The Waveform Science Behind TENS Therapy: Guide to Every Mode
If you've picked up a TENS unit and stared at 8 or 9 unlabeled mode buttons, you're not alone. What's actually different between "Mode 3" and "Mode 7"? Why does the intensity dial feel different from session to session, even on the same setting? We get asked this a lot, so we put together a clear explanation of what's actually happening inside each mode. We'll walk through it using the modes on our Wireless 4-Channel TENS Therapy Device.
August 25, 2026 By Wellue Health
A TENS mode is a pre-set combination of three things: waveform pattern, frequency, and pulse width. Intensity is a fourth variable, and you control that one yourself. Modes generally fall into four waveform families: continuous, burst, modulated, and intermittent. Each one produces a different sensation, and each is designed to help stop your body from "tuning out" the stimulation over time. Wellue's 9 modes are different variations and combinations built around these four core patterns, so there's a comfortable fit no matter what you respond to best, and each one can be paired with 16 intensity levels to dial in the exact strength.
what actually controls intensity (and why it's not voltage)
Intensity is controlled by output current, measured in milliamps (mA). It is not controlled by voltage. We build our devices as constant current systems. When you press the intensity button, you're setting a target current, and the device's circuitry automatically adjusts voltage in the background to hit that target. Your skin acts as resistance in this equation, and skin resistance isn't constant, it changes with sweat, pad condition, and placement. That's why we regulate current instead of voltage: it's how the intensity level you selected stays consistent through the whole session, even as the background voltage shifts to compensate.
the four waveform families, explained
Multi-mode TENS units typically organize their modes into four underlying waveform shapes. Continuous Wave is a steady, uninterrupted stream, usually 80 to 160 Hz, the classic setting for fast relief on sudden, sharp pain. Burst Wave groups pulses into tight clusters alternating between two frequencies, which helps delay nerve accommodation, the tendency for a steady stimulus to "fade" over a long session. Modulated Wave smoothly rises and falls instead of switching abruptly, making it the most comfortable option for longer sessions of 45 minutes or more. Intermittent Wave runs for a set period, stops, then resumes, closer to a pulsing massage than a continuous buzz, commonly associated with promoting local circulation and reducing stiffness.
why channel count and wireless design actually matter
A single channel TENS unit can only run one waveform, at one intensity, on one pair of pads at a time. We designed our Wireless 4-Channel TENS Therapy Device to run four pad pairs independently, each with its own intensity level, so you could run a burst mode on your lower back while a second channel runs a modulated mode on a stiff shoulder, in the same session. And because it's wireless, mobility during a session isn't something you should have to give up for pain relief.
The Four Variables Behind Every TENS Session
Every TENS mode is built from three parameters the manufacturer sets ahead of time. There's also a fourth variable, and that one is up to you.
Manufacturer, fixed per mode
How long each individual electrical pulse lasts
50 to 250 microseconds (μs)
Manufacturer, fixed per mode
How many pulses are delivered per second
Manufacturer, defines the "mode"
Whether pulses run continuously, in bursts, in smooth waves, or in on/off cycles
You, via the dial or +/- buttons
How strong each pulse feels
The first three define which "mode" you're in. The fourth one, intensity, works independently of the mode, it's the one variable you actively adjust in real time during a session.
Full Mode Breakdown (9-Mode / 4-Channel wellue TENS Unit)
Here's how our Wireless 4-Channel TENS Therapy Device's 9-mode system maps these concepts to actual mode numbers.
Fast, short-term relief for acute or sharp pain
Varies throughout session
"Set and forget" full-session variety, good default for new users
Gentle introduction for first-time users
Mild to moderate chronic ache
Mid-intensity chronic pain
Long sessions, maximum comfort
Circulation-focused, massage-like feel
Post-activity muscle recovery
A note on Mode 2 (the auto-cycle mode)
Mode 2 isn't a waveform in its own right. It's a pre-programmed sequence that automatically rotates through Modes 3 through 9, spending 150 seconds on each before moving to the next, and looping back to the start once it finishes the set. It's the mode we point first-time users to by default, since it takes the guesswork out of getting started.
TENS vs. EMS/NMES: Don't Confuse These
If you've been researching TENS units, you've probably also come across "EMS" or "NMES" devices, sometimes sold in similar looking packaging. These are not the same thing.
Transcutaneous Electrical Nerve Stimulation
(Neuromuscular) Electrical Muscle Stimulation
Motor nerves and muscle fibers directly
Pain relief, blocking pain signals
Muscle contraction, toning, recovery
Visible muscle twitching or contraction
Often lower, with stronger pulse widths designed to trigger contraction
Many multi-function devices combine both TENS and EMS modes in one device. Check your mode list carefully to confirm which category each numbered mode falls into before assuming they all work the same way.
Safety, Placement, and Contraindications
This section covers general safety information. It is not a substitute for guidance from a healthcare provider, especially if any of the conditions below apply to you.
Do not use a TENS device if you:
• Have a pacemaker, implanted defibrillator, or any other implanted electronic medical device
• Have epilepsy or another seizure disorder
• Are pregnant, unless a healthcare provider has specifically cleared you. Never place pads directly over the abdomen, or the lower back and abdomen area, during pregnancy without medical guidance
• Have a known or suspected blood clot (DVT), active cancer at the treatment site, or an active infection at the treatment site
General placement guidance:
• Never place pads on the front or sides of the neck, near the carotid sinus. Also avoid the chest with pads on both sides of the heart at once, the eyes, broken or irritated skin, and numb areas where you can't accurately gauge sensation
• Start at the lowest intensity and increase gradually. You should feel a strong but comfortable tingling, never sharp pain
• Most sessions run 15 to 30 minutes. Check your specific device's manual for the maximum recommended session length

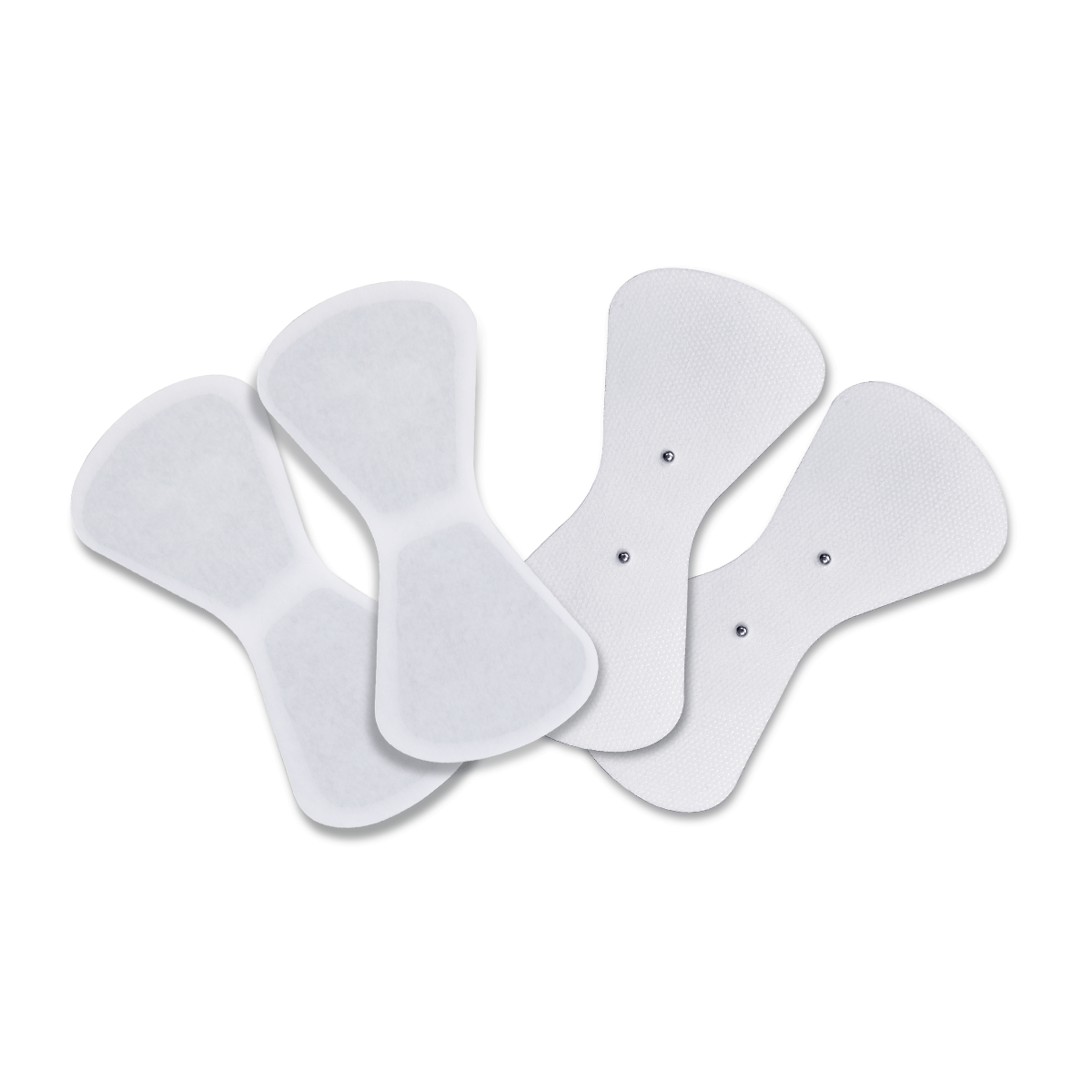

• Replace gel pads once they lose stickiness or the gel looks dry. A poorly adhered pad increases local skin resistance, which can make the same intensity setting feel weaker overall, or briefly sharper in one spot if contact is patchy
Frequently Asked Questions
Does a higher frequency mean a stronger session?
Not directly. Frequency changes the rhythm and pattern of the pulses, meaning how they're spaced out over time. It doesn't determine how strong they feel. Strength is a separate variable, controlled entirely by intensity, or current, which you adjust independently with the +/- buttons.
Why does my device list two frequency numbers per mode, like "20Hz/40Hz"?
Most modes alternate between two related frequencies, rather than holding one fixed rate. This is designed to reduce nerve accommodation, the tendency for a perfectly steady stimulus to feel like it "fades" over a long session.
What does pulse width actually affect, and why is it fixed at 120μs across every mode?
Pulse width is how long each individual pulse lasts, measured in microseconds. Combined with current, it determines how much electrical charge is delivered per pulse. Keeping pulse width fixed across all modes means sensation is calibrated mainly through intensity and waveform pattern.
Is voltage or current what I'm actually adjusting when I turn up the intensity?
Current. We build our units as constant current devices. You set a target current in mA, and the device automatically adjusts its internal voltage in real time to compensate for your skin's resistance.
Why does the same intensity level feel different on different days?
This is almost always a skin contact or pad condition issue, not a mode issue. Dry skin, older gel pads, or slightly different pad placement all change your skin's resistance, which changes how much voltage the device needs to hit your target current.
Is a higher mode number always more intense?
No. Mode numbers represent different waveform patterns: continuous, burst, modulated, and intermittent. They're not an intensity ladder. Intensity is always a separate, independently adjustable setting.
Will my body get "used to" the stimulation and stop feeling it?
This is a real phenomenon called nerve accommodation. It's the main reason we built burst and dual-frequency modes, since alternating the pattern helps delay it.
Can I use TENS and EMS/NMES modes interchangeably?
No. They target different things. TENS targets sensory nerves for pain relief, while EMS targets motor nerves for muscle contraction. Check your specific mode list to confirm which category each mode belongs to before use.
How do I know if I'm using the right intensity?
You should feel a strong, clearly noticeable tingling or pulsing sensation that stays comfortable. It should never turn into sharp pain. If a setting is uncomfortable, dial it back rather than pushing through it.
Can I fall asleep with a TENS unit on?
We recommend against unattended or overnight use. The main reason is that you can't monitor skin reaction or adjust for discomfort while asleep.
Why Do Modes Use Two Frequency Numbers?
Almost every mode lists a pair of frequencies, like "20 Hz / 40 Hz," rather than one fixed number. Picture a device running at a single, perfectly steady frequency for 30 to 60 minutes straight, your nervous system would gradually adapt to it, the same reason a ticking clock eventually "disappears" from your awareness. Alternating between two related frequencies keeps the pattern changing just enough that your nerves don't fully habituate. That's exactly why we built every mode on our Wireless 4-Channel TENS Therapy Device on a dual-frequency pair, rather than a single fixed rate.
How to Choose a Mode for Your Symptoms
For sudden, sharp pain like a pulled muscle, start with a continuous, higher frequency mode for fast relief. For chronic, dull, ongoing pain like lower back pain or arthritis, burst or modulated modes at a lower to moderate frequency tend to be better tolerated over longer sessions. For stiffness or reduced circulation, intermittent modes are the closest thing to a massage pattern. For long sessions of 45+ minutes, modulated modes are generally the most comfortable. And if you're not sure where to start, the auto-cycle mode rotates through everything automatically, which is why we recommend it by default for first-time users.
Every mode number, frequency pair, and intensity level on a well-designed TENS device is there for a specific reason. We built our Wireless 4-Channel TENS Therapy Device with this in mind at every step: four independently controlled channels, dual-frequency modes across the whole library, constant current regulation for consistent intensity, and a cordless build. We hope this guide helps you match a setting to what you're actually feeling, rather than cycling through numbered buttons and hoping for the best.
