Device Dimensions
134 mm × 74 mm × 17 mm
( 5.28" × 2.91" × 0.67")
Weight
250g (unit & battery in total)
Display
4.46 inches color LCD touchscreen
Screen Resolution
480 × 854 pixels
12-Lead Pocket ECG Machine
Diagnostic ECG machine in your pocket.
Portable 12-lead Resting ECG machine with automatic interpretation, designed for on-site medical delivery.
*For use by qualified, trained or licensed healthcare professionals
Fast
- Smart
- Portable
12-Lead Pocket ECG Machine
Diagnostic ECG machine in your pocket.
*For use by qualified, trained or licensed healthcare professionals
Portable ECG Machine
Light in weight, small in size, easy to carry.
Adults & Pediatrics
Support ECG tests and analysis for adults & children
Automatic Interpretation
Advisory rhythm analysis based on authorized databases
Easy Patient Management
ECG reports in PDF, BMP, DAT; easily import to hospital management system
Wireless Transmission
Share patient data via USB drive or WiFi network
All Day Long Battery Life
Continuously work for 24 hours after fully charged. Ideal for long-hour shifts and patient monitoring
10,000+ Files Stored
Store more than 10,000 ECG cases, 10 times larger than traditional ECG machines
Easy to Operate
Accurately identify the electrode with poor contact and give instructions on the color touchscreen
Phone Sized 12-Lead ECG Machine
6/12 Leads | Glasgow Algorithm
The compact 12-lead pocket ECG machine boasts a size smaller than a mobile phone and a super light weight of a mere 250g. Despite its diminutive stature, it packs a punch with the extensive functions of ECG machine. It supports synchronous 12-lead ECG acquisition & interpretation, display of 6-lead/12-lead ECG waveforms, as well as the heart rate detection. Physicians can conveniently slip it into their pockets, carry it around without any burden and perform ECG tests anywhere, anytime.
ECG Tests in the Palm of Your Hand
A must-have for clinicians, healthcare professionals, EMS (Emergency Medical Services) and especially on-site medical delivery services. Perform cardiac tests in the palm of hand immediately and get the result rapidly to make treatment decisions.
ECG Tests in the Palm of Your Hand
Perform cardiac tests in the palm of hand immediately and get the result rapidly to make treatment decisions. A must-have for clinicians, healthcare facilities, EMS (Emergency Medical Services) and especially on-site medical delivery services.
Portable ECG Machine for All Kinds of Medical Services
Home Caregivers, Family Doctors & Cardiologists
This portable ECG machine provides a mobile solution to caregivers and traveling physicians, meeting their demands for mobile ECG exams and interpretation.
Clinics, hospitals & Health Centers
ECG reports transmission via smartphones is helpful with teleconsultation whether in the ambulance, between the onsite clinicians and the off-site cardiologists or among hospitals, clinics, health centers.
prehospital Emergent services
Get rid of large, heavy emergency devices. This mini ECG unit allows paramedics to carry it in the pocket for pre-hospital care in ambulances. Saving space, time and energy during intensive shifts.
Glasgow eCG Interpretation Integrated
The University of Glasgow 12-Lead ECG Analysis Algorithm (GA) is integrated into the machine for ECG data analysis. As one of the top three resting ECG interpretive algorithms in the world, the GA is highly effective in interpreting STEMI (ST-Segment Elevation Myocardial infarction), helps in QTC measurements facilitating assessment of cardiac risk, and offers short diagnostic reports for hospitals and detailed reports for primary care settings.
Glasgow eCG Interpretation integrated
The University of Glasgow 12-Lead ECG Analysis Algorithm (GA) is integrated into the machine for ECG data analysis. As one of the top 3 resting ECG interpretive algorithms in the world, the GA is highly effective in interpreting STEMI (ST-Segment Elevation Myocardial infarction), helps in QTC measurements facilitating assessment of cardiac risk, and offers short diagnostic reports for hospitals and detailed reports for primary care settings.

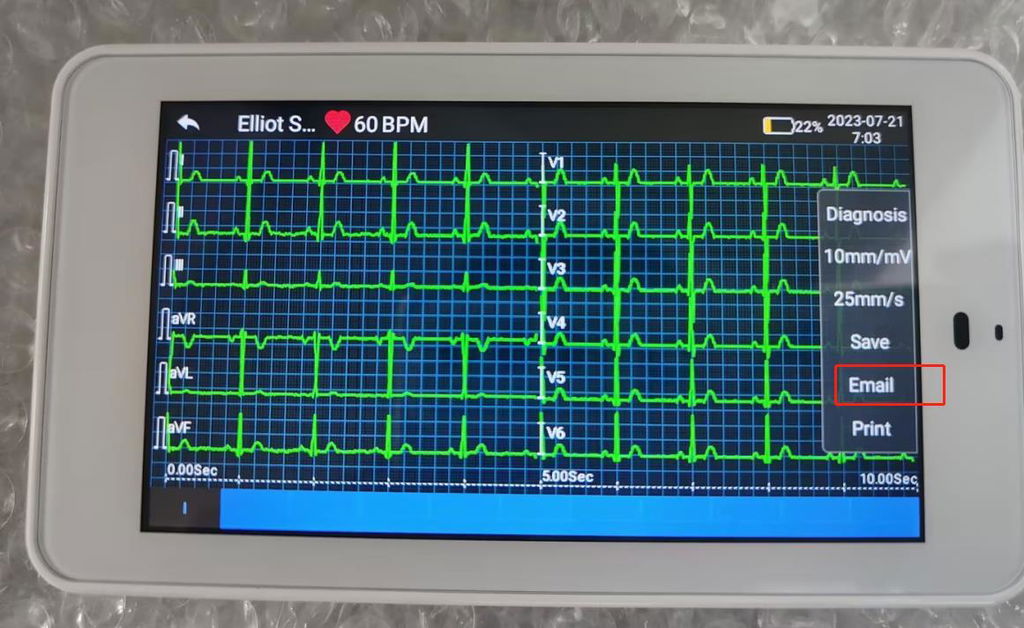

Edit the Arrhythmia Diagnosis on Color Touchscreen
Key parameters are displayed to reveal full insights on heart rhythm. Cardiologists can easily edit the diagnosis with one tap on its touch screen. Decreasing prehospital cardiac catheterization laboratory (CCL) activations and unnecessary healthcare paperworks with great efficiency.
Access, View & Export Reports in Seconds
The pocket ECG provides thorough report with a wide range of statistics available, as well as inclusive data on all known arrhythmia kinds, and the advisory result for the right medical treatment.
Get Full Insight on Heart Rhythm
It provides clear and complete statistical summaries of heart rate, P duration, PR interval, QRS duration, QT/QTC interval, P/QRS/T axis, and full set of measurements to create a complete picture of patients' heart rhythms.
Access, View & Extra ECG Reports in Seconds
This small ECG machine allows for thorough reporting with a wide range of statistics available to the physician, as well as inclusive data on all known arrhythmia kinds, and the basis for choosing the medical treatment.
Get Full Insight on Heart Rhythm
It provides easy-to-read front-page statistical summaries (Heart rate, P duration, PR interval, QRS duration, QT/QTC interval, P/QRS/T axis), and full data sets to create a complete picture of a patient's heart rhythm.
Share ECG Data with Android Devices & Computers
Support wireless transmission of ECG data via WiFi and mobile networks. Also provide a USB Type-C dual-head flash drive to transfer files between Android devices and computers.
Print ECG Reports Wirelessly
1
Choose your patient's case.
In the file section, choose the report you want to print out.
2

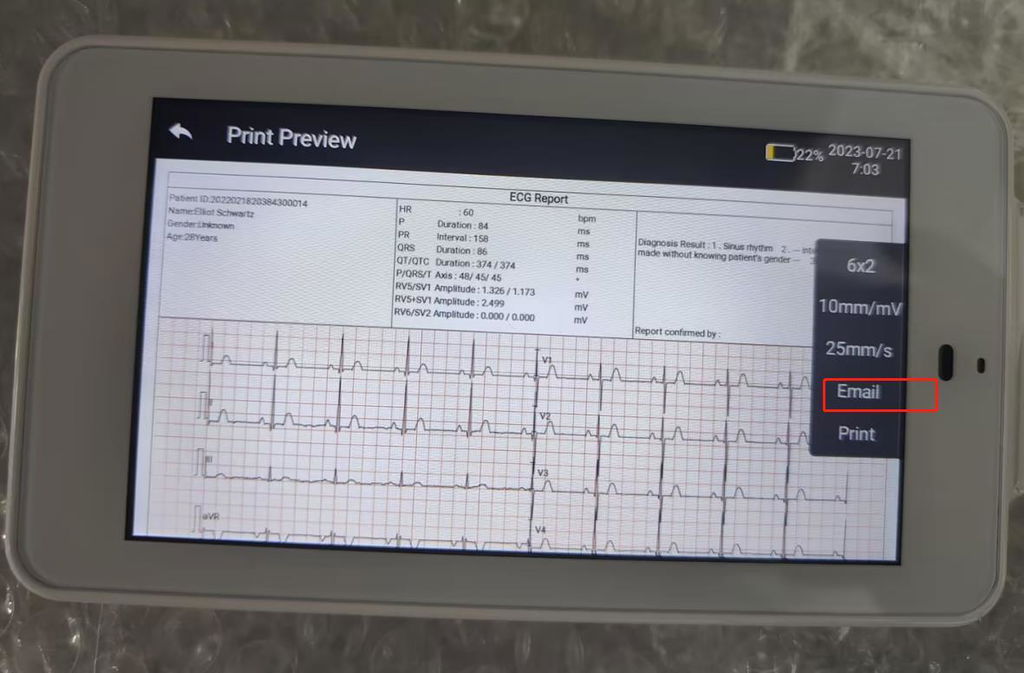

Preview and export the ECG report.
Then you can preview the format and content of the ECG report. Tap export to get the digital file.
3
Save your report on the flash drive we provide.
We also provide a USB type-c dual-head flash drive for your extra data storage and transmission.
4
Print ECG reports with USB or network printer.
Print ECG reports through an external printer by USB flash disk or wifi network connection.
Input Patient Information in Seconds
Input patient information by scanning the barcode on patient's wrist. Saving time on managing patient information digitally instead of handwriting on paperworks.
Input Patient Information in Seconds
Input patient information by scanning the barcode on patient's wrist. Saving time on managing patient information digitally instead of handwriting.
On-screen ECG Placement Guide
Electrode connection diagram and real-time connection status are shown on the display. Accurately identify poor electrode connections and provide related instructions.
5 ECG Sampling Modes
Provide 5 sampling modes: pre-sampling, real-time sampling, periodic sampling, trigger sampling and R-R.

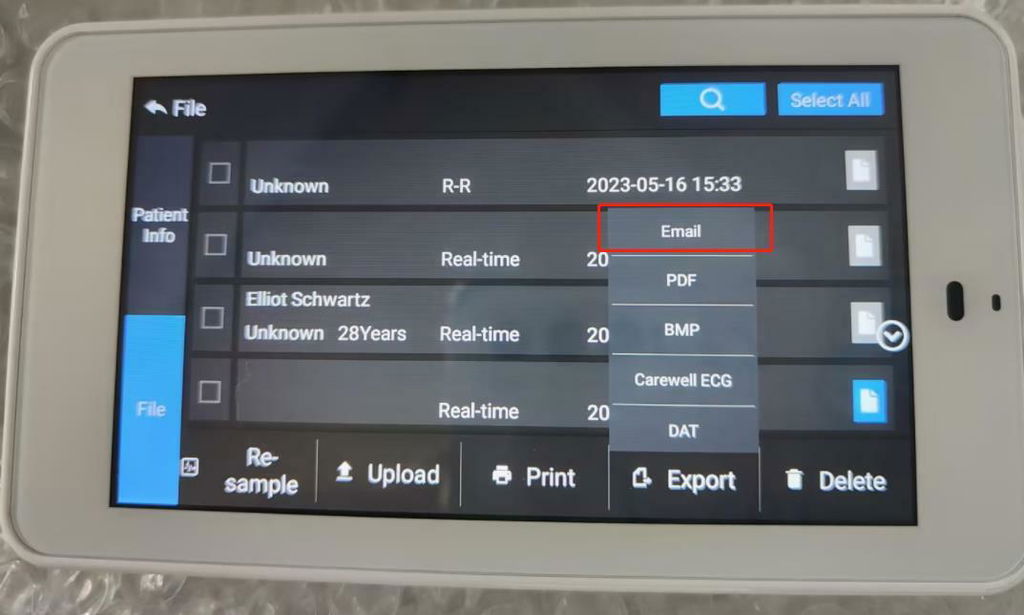

Export ECG Reports in Multiple Formats
Output files in multiple formats, such as ECG report, PDF, BMP, DAT, easily connect to your hospital management system, helpful for easy patient management.
Choose the right ECG for your practice
MOST PORTABLE
MOST ADVANCED
MOST COST-EFFECTIVE
Most Portable
Most Advanced
Most Cost-Effective
Channels
12 Channels
12 Channels
3 Channels
Lead Mode
Standard 12 leads; 6 leads
Standard 12 leads; Cabrera; Nehb, VCG
Standard 12 leads
Display
4.46 Inches
9 Inches
5 Inches
Screen
Touchable
Touchable
Non-touchable
Battery
Rechargeable, 24-hour continuous work
Rechargeable, 3-hour continuous work
Rechargeable, 3-hour continuous work
Local Storage
10,000+ files
3,500 files
1,500 files
Thermal Paper
Need an external printer
Z-fold paper: 210mm*140mm
Rolled paper: 20mm*80mm
Weight
250g
3.4KG
1.3KG
Accessories in the Package
Included in the package, we provide all the accessories you need to operate the unit.
1 set of patient ECG cable
Disposable ECG electrodes (20 pcs)
USB Type-C dual-head flash drive
Type-C charging cable

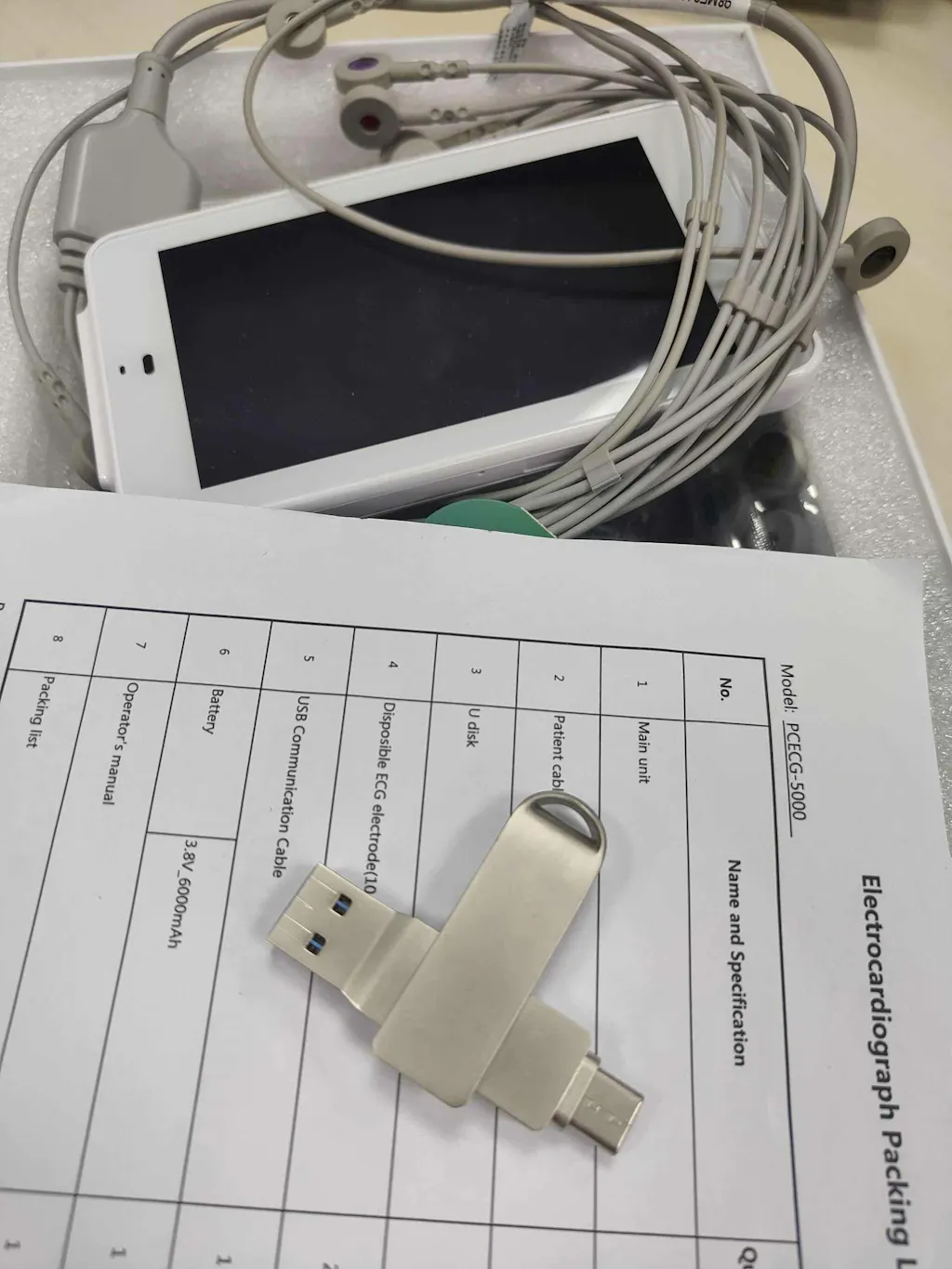

What's In the Box
Main ECG Machine Unit
Detailed User Manual
Patient Cable (1 set)
Adult Disaposable Electrodes (20 pcs)
USB Type-C Dual-Head Flash Drive
Type-C Cable Charger
Specifications
- Physical Details
- Tech Specifications
- Battery
Physical Details
Device Dimensions
134 mm × 74 mm × 17 mm ( 5.28" × 2.91" × 0.67")
Weight
250g (unit & battery in total)
Display
4.46 inches color LCD touchscreen
Screen Resolution
480 × 854 pixels
Tech Specifications
Leads
6-lead / 12-lead synchronous acquisition and analysis
Heart Rate Calculation
Peak-peak detection
Heart Rate Range
30 bpm~300 bpm
Accuracy
±1bpm
ECG Input Signal Range
≤±5mVp-p
Minimum Detectable Signal
20μVp-p
Frequency Response
0.05Hz～150Hz, 10Hz
Sensitivity
2.5mm/mV, 5mm/mV, 10mm/mV, 20mm/mV Accuracy: ±5%
A/D Conversion
24 bits
Sampling Rate
2000 samples/sec
Common Mode Rejection Ratio (CMRR)
≥100dB (AC filter on)
Time Constant
≥3.2s
EMG Filter
25Hz, 35Hz, 45Hz, Off
ADS Filter
0.05Hz, 0.32Hz, 0.67Hz
Lowpass Filter
75Hz, 100Hz, 150Hz, Off
AC Filter
50Hz, 60Hz, Off
Speed
5mm/s, 6.25mm/s, 10mm/s, 12.5mm/s, 25mm/s, 50mm/s Accuracy: ±3%
Noise
≤30μVp-p
Battery
Rechargeable
Rechargeable Lithium Battery
Rated Voltage
3.8V
Rated Capacity
6000mAh
Battery Life
24-hour continuous operating
Charging Time
8 hours
Specifications
Physical Details
Battery
Battery
Rechargeable Lithium Battery
Battery Rated Capacity & Voltage
6000mAh; 3.8V
Battery Life
24-hour continuous operating
Battery Charging Time
8 hours
Tech Specifications
Leads
6-lead / 12-lead synchronous acquisition and analysis
Heart Rate Calculation
Peak-peak detection
Heart Rate Range
30 bpm~300 bpm
Accuracy
±1bpm
ECG Input Signal Range
≤±5mVp-p
Minimum Detectable Signal
20μVp-p
Frequency Response
0.05Hz～150Hz, 10Hz
Sensitivity
2.5mm/mV, 5mm/mV, 10mm/mV, 20mm/mV Accuracy: ±5%
A/D Conversion
24 bits
Sampling Rate
2000 samples/sec
Common Mode Rejection Ratio (CMRR)
≥100dB (AC filter on)
Time Constant
≥3.2s
EMG Filter
25Hz, 35Hz, 45Hz, Off
ADS Filter
0.05Hz, 0.32Hz, 0.67Hz
Lowpass Filter
75Hz, 100Hz, 150Hz, Off
AC Filter
50Hz, 60Hz, Off
Speed
5mm/s, 6.25mm/s, 10mm/s, 12.5mm/s, 25mm/s, 50mm/s Accuracy: ±3%
Noise
≤30μVp-p
Frequently Asked
Questions
Need Help? We've got you covered!
What does the ECG report include?
A report usually includes waveform area, patient information area, measurement parameter area, diagnosis result area. You can also select to print the average template (only available for 6-lead) and measurement matrix information.
Measurement parameters include:
HR (Heart rate) (bpm), P Duration (ms), PR Interval (ms), QRS Duration (ms), QT/QTc Duration (ms), P/QRS/T Axis (°), RV5/SV1 Amplitude (mV), RV5+SV1 Amplitude (mV), RV6/SV2 Amplitude (mV)
Diagnosis result:
Shows the auto diagnosis result.
Average template:
Gives the average value of 10s acquired ECG signal of each lead.
Measurement matrix:
Gives 14 measurements of each lead, including:
P amplitude (mV), Q amplitude (mV), R amplitude (mV), S amplitude (mV), T amplitude (mV), ST1 amplitude (mV), STJ amplitude (mV), ST20 amplitude (mV), ST40 amplitude (mV), ST60 amplitude (mV), ST80 amplitude (mV), Q duration (ms), R duration (ms), S duration (ms)
Is the 12-lead pocket ECG machine compatible with network printers?
Yes, please check for compatible network printer models list:
https://getwellue.com/pages/printers-compatible-with-wellue-12-lead-ecg-tablet
What are the benefits of Automatic ECG Interpretation by Glasgow Algorithm?
- Helps in QTc measurements facilitating assessment of cardiac risk.
- Highly effective in interpreting STEMI (ST Segment Elevation Myocardial Infarction).
- Can utilize V4R for neonates and children.
- Offers short diagnostic reports for hospitals and detailed reports for primary care settings.
- Critical values included in diagnostic reporting template.
- Pocket ECG machine combines complete data with sophisticated proprietary algorithms for comprehensive statistical analysis.
