In the real-time state, select the 'Depth', then press '+' '-' to change the current display depth (or magnification). The current depth is displayed in the lower right corner of the screen, and the depth adjustment range changes with the probe type.
VETERINARY PERFORMANCE, PROVEN
12.1-Inch Display
96-Element Ultrasound Transducer
5 Display Modes
Obstetric&Cardiac Reports
Adjustable Precision Imaging Parameters
Comprehensive Animal Organ Imaging
External storage function
WIDE APPLICATION
3 ULTRASOUND TRANSDUCERS
Convex Probe
Frequency
3.5MHz-5MHz
Scan Depth
126-307mm
Application
Mainly applied to the in vitro diagnosis of medium-sized animals (Weight ≥ 13lb/6kg)
Micro-Convex Probe
Frequency
5.5MHz-7.5MHz
Scan Depth
40-189mm
Application
Mainly applied to the in vitro diagnosis of small-sized animals (Weight 8-20 lb/3.5-9kg)
Rectal Probe
Frequency
5.5MHz-7.5MHz
Scan Depth
48-166mm
Application
Mainly applied to the in vivo diagnosis of large animals
Convex Probe
Frequency
3.5MHz-5MHz
Scan Depth
126-307mm
Application
Mainly applied to the in vitro diagnosis of medium-sized animals (Weight ≥ 13lb/6kg)
Micro-Convex Probe
Frequency
5.5MHz-7.5MHz
Scan Depth
40-189mm
Application
Mainly applied to the in vitro diagnosis of small-sized animals (Weight 8-20 lb/3.5-9kg)
Rectal Probe
Frequency
5.5MHz-7.5MHz
Scan Depth
48-166mm
Application
Mainly applied to the in vivo diagnosis of large animals
ADVANCED, CAPABLE, ADAPTABLE
Abdominal Imaging: Assessing organs like the liver, spleen, and kidneys for anomalies.
Cardiac Evaluation: Monitoring heart function, and detecting arrhythmias or structural issues.
- Reproductive Health: Diagnosing pregnancies, and monitoring fetal development.
- Guided Procedures: Assisting in biopsies or fluid aspiration.
- Emergency Care: Rapid assessment in critical situations.
16
Image magnification: depth adjustment(16 levels adjustable)
100
Gain adjustment range 0-100
307
The maximum display depth in B mode is 307mm
8
Obstetric reports of 8 kinds of animals
16
Image magnification: depth adjustment(16 levels adjustable)
8
Obstetric reports of 8 kinds of animals
100
Gain adjustment range 0-100
307
The maximum display depth in B mode is 307mm
INTUITIVE OPERATION PANEL
Common parameter adjustments
Depth Adjustment
Frequency Adjustment
In the real-time scanning state, press the "Freq" key on the operation panel to switch the frequency of the current working probe. Press this key continuously to change to the desired frequency, and the parameter display area on the upper right of the screen will display the current working frequency, such as: "Frequency: 3.5M", variable frequency to 2.0MHz, 2.5MHz, 3.5MHz, 4.0 MHz, 5.0MHz.
Obstetric Measurement
Adjust to get a satisfactory image in B mode and freeze it, press the "OBC" key to bring up the obstetrical measurement menu, and it will display the corresponding Obstetric Measurement parameters according to the selected animal type.
Puncture Guidence
Press the 'Punct' key in the real-time scanning state of B Mode, and use the "Punct" key to select the guide line that needs to be adjusted, use the '↑↓' key to adjust the angle of the guide line, and press the '← →' key to move the guide line horizontally.
Seamlessly switch between 5 DISPLAY MODES
5 Imaging Display Modes, Caters to Specific Diagnostic Needs
B MODE (Brightness Mode)
Benefit: Provides a real-time grayscale image of the animal's internal structures. Ideal for visualizing organ shapes, sizes, and positions.
Use Case: Helps identify structures, locate abnormalities.
BB MODE (B-Mode with B-Mode Comparison)
Benefit: Compares current and previous B-mode images side by side, aiding in tracking changes over time.
Use Case: Valuable for monitoring the progression or regression of conditions, such as tumor growth or healing injuries.
B+M MODE (Brightness + Motion Mode)
Benefit: Simultaneously displays B-mode and M-mode images, allowing for dynamic visualization of moving structures (e.g., heart valves) within surrounding tissues.
Use Case: Essential for assessing cardiovascular function.
M MODE (Motion Mode)
Benefit: Presents a one-dimensional motion display over time, offering detailed insights into the movement of specific structures.
Use Case: Crucial for assessing cardiac motion, and monitoring fetal heartbeats during pregnancy.
4B MODE (Four B-Mode Mode)
Benefit: Combines four separate B-mode images into one screen, enabling a comprehensive view of a specific area from various angles.
Use Case: Useful when evaluating complex anatomical regions, enabling a more complete understanding of structures and potential anomalies.
Cardiac Measurements and report
You can easily take measurements of cardiac depth, slope, period, and heart rate in the BM display mode. It also generates Cardiac Reports with your animal patient info, which helps to elevate veterinary cardiac assessment.
Puncture Guidance
With the Puncture Guidance function, users can effortlessly enhance their puncture procedures in B Mode. It helps to precisely generate a guiding line directly onto the visualized tissue area within the image, allowing users to position the puncture needle and elevate their puncture accuracy.
Puncture guide line
Obstetric MEASUREMENTS AND REPORT
Offers precise gestational age measurement for a wide range of animals. Utilizing a comprehensive set of parameters, such as gestational sac diameter, head diameter, and more. Efficiently delivers accurate gestational age information. Helps to streamline veterinary care and ensure optimal breeding and healthcare management.
GA Measurement pARAMETERS
EQUINE
- GSD (Gestational Sac Diameter)
- BPD (Biparietal Diameter)
- CRL (Crown Rump Length)
- EOD (Edge to OS Distance)
BOVINE
- BPD (Biparietal Diameter)
- CRL (Crown Rump Length)
- TD (Trunk Diameter)
SWINE
- GSD (Gestational Sac Diameter)
OVINE
- BPD (Biparietal Diameter)
- CRL (Crown Rump Length)
- TD (Trunk Diameter)
- USD (Umbilical Spine Diameter)
GOAT
- BPD (Biparietal Diameter)
FELINE
- HD (Head Diameter)
- BD (Biparietal Diameter)
CANINE
- GSD (Gestational Sac Diameter)
- CRL (Crown Rump Length)
- BPD (Biparietal Diameter)
CAMEL
SCANNING IMAGES GALLERY
Scan Images of Different Body Positions of Dog
ALL-IN-ONE DESIGN FOR EASY PORTABILITY
Designed to overcome obstacles in challenging vet healthcare environment. With more than 4 hours of uninterrupted scanning with a rechargeable battery, you can conduct multiple examinations without worrying about power. Especially suitable for environments such as farms.
MOVIE PLAYBACK & VIDEO OUTPUT
Store your scanned images with local storage or an external U-disk device. Supported image formats include bpm and jpg. Supports movie playback function within the freeze mode, offering both manual and automatic playback options. With a storage capacity of more than 500 frames, you can capture extended sequences with ease. Can be connected to a video printer and also supports an external video monitor. Retrieval and reading are effortlessly facilitated for both images and videos.
CARDIAC MEASUREMENTS AND REPORT
You can easily take measurements of cardiac depth, slope, period, and heart rate in the BM display mode. It also generates Cardiac Reports with your animal patient info, which helps to elevate veterinary cardiac assessment.
PUNCTURE GUIDANCE
With the Puncture Guidance function, users can effortlessly enhance their puncture procedures in B Mode. It helps to precisely generate a guiding line directly onto the visualized tissue area within the image, allowing users to position the puncture needle and elevate their puncture accuracy.
Puncture guide line
Obstetric MEASUREMENTS AND REPORT
Offers precise gestational age measurement for a wide range of animals. Utilizing a comprehensive set of parameters, such as gestational sac diameter, head diameter, and more. Efficiently delivers accurate gestational age information. Helps to streamline veterinary care and ensure optimal breeding and healthcare management.
GA Measurement pARAMETERS
EQUINE
- GSD (Gestational Sac Diameter)
- BPD (Biparietal Diameter)
- CRL (Crown Rump Length)
- EOD (Edge to OS Distance)
BOVINE
- BPD (Biparietal Diameter)
- CRL (Crown Rump Length)
SWINE
- GSD (Gestational Sac Diameter)
OVINE
- BPD (Biparietal Diameter)
- CRL (Crown Rump Length)
- TD (Trunk Diameter)
- USD (Umbilical Spine Diameter)
GOAT
- BPD (Biparietal Diameter)
FELINE
- HD (Head Diameter)
- BD (Biparietal Diameter)
CANINE
- GSD (Gestational Sac Diameter)
- CRL (Crown Rump Length)
- BPD (Biparietal Diameter)
CAMEL
SCANNING IMAGES GALLERY
Scan Images of Different Body Positions of Dog
ALL-IN-ONE DESIGN FOR EASY PORTABILITY
Designed to overcome obstacles in challenging vet healthcare environment. With more than 4 hours of uninterrupted scanning with a rechargeable battery, you can conduct multiple examinations without worrying about power. Especially suitable for environments such as farms.
CINE LOOP&VIDEO OUTPUT
intuitive operation panel
This intuitive interface ensures effortless control, streamlines operations, and ensures precise adjustments. It empowers users to access various imaging modes, adjust parameters, enhance diagnostic accuracy, and achieve complex diagnoses with simply one click.
Common parameter adjustments
Depth Adjustment
In the real-time state, select the 'Depth', then press '+' '-' to change the current display depth (or magnification). The current depth is displayed in the lower right corner of the screen, and the depth adjustment range changes with the probe type.
Frequency Adjustment
In the real-time scanning state, press the "Freq" key on the operation panel to switch the frequency of the current working probe. Press this key continuously to change to the desired frequency, and the parameter display area on the upper right of the screen will display the current working frequency, such as: "Frequency: 3.5M", variable frequency to 2.0MHz, 2.5MHz, 3.5MHz, 4.0 MHz, 5.0MHz.
Obstetric Measurement
Adjust to get a satisfactory image in B mode and freeze it, press the "OBC" key to bring up the obstetrical measurement menu, and it will display the corresponding Obstetric Measurement parameters according to the selected animal type.
Puncture Guidence
Press the 'Punct' key in the real-time scanning state of B Mode, and use the "Punct" key to select the guide line that needs to be adjusted, use the '↑↓' key to adjust the angle of the guide line, and press the '← →' key to move the guide line horizontally.
Seamlessly switch between 5 DISPLAY MODES
5 Imaging Display Modes, Caters to Specific Diagnostic Needs
B MODE (Brightness Mode)
Benefit: Provides a real-time grayscale image of the animal's internal structures. Ideal for visualizing organ shapes, sizes, and positions.
Use Case: Helps identify structures, locate abnormalities.
BB MODE (B-Mode with B-Mode Comparison)
Benefit: Compares current and previous B-mode images side by side, aiding in tracking changes over time.
Use Case: Valuable for monitoring the progression or regression of conditions, such as tumor growth or healing injuries.
B+M MODE (Brightness + Motion Mode)
Benefit: Simultaneously displays B-mode and M-mode images, allowing for dynamic visualization of moving structures (e.g., heart valves) within surrounding tissues.
Use Case: Essential for assessing cardiovascular function.
M MODE (Motion Mode)
Benefit: Presents a one-dimensional motion display over time, offering detailed insights into the movement of specific structures.
Use Case: Crucial for assessing cardiac motion, and monitoring fetal heartbeats during pregnancy.
4B MODE (Four B-Mode Mode)
Benefit: Combines four separate B-mode images into one screen, enabling a comprehensive view of a specific area from various angles.
Use Case: Useful when evaluating complex anatomical regions, enabling a more complete understanding of structures and potential anomalies.
Cardiac Measurements and report
You can easily take measurements of cardiac depth, slope, period, and heart rate in the BM display mode. It also generates Cardiac Reports with your animal patient info, which helps to elevate veterinary cardiac assessment.
Puncture Guidance
With the Puncture Guidance function, users can effortlessly enhance their puncture procedures in B Mode. It helps to precisely generate a guiding line directly onto the visualized tissue area within the image, allowing users to position the puncture needle and elevate their puncture accuracy.
Puncture guide line
Obstetric MEASUREMENTS AND REPORT
Offers precise gestational age measurement for a wide range of animals. Utilizing a comprehensive set of parameters, such as gestational sac diameter, head diameter, and more. Efficiently delivers accurate gestational age information. Helps to streamline veterinary care and ensure optimal breeding and healthcare management.
GA Measurement pARAMETERS
EQUINE
- GSD (Gestational Sac Diameter)
- BPD (Biparietal Diameter)
- CRL (Crown Rump Length)
- EOD (Edge to OS Distance)
BOVINE
- BPD (Biparietal Diameter)
- CRL (Crown Rump Length)
- TD (Trunk Diameter)
SWINE
- GSD (Gestational Sac Diameter)
OVINE
- BPD (Biparietal Diameter)
- CRL (Crown Rump Length)
- TD (Trunk Diameter)
- USD (Umbilical Spine Diameter)
GOAT
- BPD (Biparietal Diameter)
FELINE
- HD (Head Diameter)
- BD (Biparietal Diameter)
CANINE
- GSD (Gestational Sac Diameter)
- CRL (Crown Rump Length)
- BPD (Biparietal Diameter)
CAMEL
SCANNING IMAGES GALLERY
Scan Images of Different Body Positions of Dog
ALL-IN-ONE DESIGN FOR EASY PORTABILITY
Designed to overcome obstacles in challenging vet healthcare environment. With more than 4 hours of uninterrupted scanning with a rechargeable battery, you can conduct multiple examinations without worrying about power. Especially suitable for environments such as farms.
CINE LOOP&VIDEO OUTPUT
Store your scanned images with local storage or an external U-disk device. Supported image formats include bpm and jpg. Supports cine loop function within the freeze mode, offering both manual and automatic playback options. With more than 500 frames in loops, you can capture extended sequences with ease. This feature is particularly useful when imaging non-cooperative animal patients. Can be connected to a video printer and also supports an external video monitor. Retrieval and reading are effortlessly facilitated for both images and videos.
Store your scanned images with local storage or an external U-disk device. Supported image formats include bpm and jpg. Supports cine loop function within the freeze mode, offering both manual and automatic playback options. With more than 500 frames in loops, you can capture extended sequences with ease. This feature is particularly useful when imaging non-cooperative animal patients. Can be connected to a video printer and also supports an external video monitor. Retrieval and reading are effortlessly facilitated for both images and videos.
Choose Your Veterinary Ultrasound
Laptop Veterinary Ultrasound
start from
$1599.00$1799.00
Portable Veterinary Ultrasound
start from
$1039.00 $1599.00
S0 Portable Veterinary Ultrasound
$599.00 $699.00
Probe
Supports Rectal&Convex&Micro-Convex electronic ultrasound transducer probes
Supports Rectal&Convex electronic ultrasound transducer probes
Mechanical sector probe
Probe Elements
96 Elements
80 Elements
64 Elements
Screen Size
12.1 inches
5.6 inches
5.6 inches
Display Mode
B, B+B, B/M, M, 4B
B, B+B, B/M, M, 4B
B,B+B,4B
Scan Depth
40-307mm
Up to 230mm
Up to 208mm
Reports
Cardiac&Obstetric
/
/
Puncture Guidance
Yes
/
/
Case Information
Up to 255
/
/
Application
Vet Clinics, Pets, Various Livestock
Pets, Various Livestock
Language
English, French, Spanish, Chinese, Portuguese, Russian
English, French, Spanish, Chinese, Portuguese, Russian
English, Chinese
Waterproof
IPX7
IPX7
IPX7
Battery Life
4 Hours
4 Hours
4 Hours
Pseudo-Color
8 kinds of Pseudo-Color
24 kinds of Pseudo-Color
8 kinds of Pseudo-Color
Video Output
VGA interface for video printer,
Video interface for external monitor
/
/
FAQS
How to measure Heart Rate&Depth and get the Cardiac Report?
- 1. Enter the BM Mode
- 2. Use the left and right arrows to adjust and determine the position of the sampling line, and freeze the image
- 3. Measure heart rate/depth, and get a heart report
How to measure GA and get the Obstetric Report?
1. Press the "Setup" key to bring up the "System Settings" menu on the right side of the screen. Select "Basic Settings" to bring up the interface, and select the animal type, there are 8 kinds of animals to choose from: pig, cow, dog, horse, cat, goat, camel, and sheep.
2. Adjust to get a satisfactory image in B mode and freeze it, press the "OBC" key to bring up the obstetrical measurement menu, and it will display the corresponding Obstetric Measurement parameters according to the selected animal type.
3. Take the GSD measurement of pigs as an example (other animal obstetric measurement methods are similar).
The operation steps are as follows:
1. First set the "animal type" to pig in the system settings (press Setup) - basic settings.
2. Obtain a satisfactory image in B mode and freeze it, press "OBC" and the following measurement menu will appear.
3. Move the cursor to the corresponding measurement item "GSD" to enter the "GSD" measurement interface. "GSD:"will be displayed on the lower right side of the screen.
4. Measure the distance of the selected parameter, and the corresponding obstetric data will be automatically displayed in the lower right corner of the screen.
Measurement steps:
① Move the cursor to the starting point of "GSD" and press the "Set" key to confirm;
②Move the cursor to move the second cursor to the target endpoint;
③Press the "Set" key to confirm and display the measurement results.
5. At this time, GSD is displayed in the lower right corner of the screen:
"L: XXXmm" (indicates that the measured length of GSD is XXXmm);
"Gestational age: WW+D" (indicates that the measured fetal gestational age is WW weeks plus DD days);
"Estimated date of delivery: 20XX/XX/XX" (indicates that the measured expected date of delivery of the fetus is year-month-day);
6. After measuring various obstetric indicators, move the cursor to "Obstetric Report" and press the "Set" key to confirm, and the obstetric report will be automatically generated. You can see the development of each part of the fetus in detail.
How to Use a Rectal Probe to Check Pregnant Cows
To accurately determine pregnancy, insert your hand with a rectal probe into the cow's rectum, locate the reproductive tract through the rectal wall, and determine whether pregnancy exists by examining the condition of the tract.
cow reproductive system
Rectal probe placement position
Can I use probes purchased elsewhere?
You should choose the probe from our company, we do not bear the risk of damage caused by the use of other probes.
How to solve the problem of the wrong due date displayed?
The default pregnancy period of the system is related to the animal type. The animal type setting is in the "Basic Settings" of the system settings. The accuracy of the system date must be ensured when calculating the expected due date.
How long does it take to see animal embryos clearly? How to confirm gestational age and due date?
Note: This form is for reference only
Choose Your Veterinary Ultrasound
Choose Your Veterinary Ultrasound
Laptop Veterinary Ultrasound
start from
$1599.00
$1799.00
Portable Veterinary Ultrasound
start from
$1039.00
$1599.00
S0 Portable Veterinary Ultrasound
$599.00
$699.00
Probe
Supports Rectal&Convex electronic ultrasound transducer probes
Supports Rectal&Convex electronic ultrasound transducer probes
Mechanical sector probe
Probe Elements
96 Elements
80 Elements
64 Elements
Screen Size
12.1 inches
5.6 inches
5.6 inches
Display Mode
B, B+B, B/M, M, 4B
B, B+B, B/M, M, 4B
B,B+B,4B
Scan Depth
40-307mm
Up to 230mm
Up to 208mm
Reports
Cardiac&Obstetric
/
Puncture Guidance
Yes
/
Battery Life
4 Hours
4 Hours
Case Information
Up to 255
/
Application
Vet Clinics, Pets, Various Livestock
Pets, Various Livestock
Language
English, French, Spanish, Chinese, Portuguese, Russian
English, French, Spanish, Chinese, Portuguese, Russian
Waterproof
IPX7
IPX7
Pseudo-Color
8 kinds of Pseudo-Color
24 kinds of Pseudo-Color
Video Output
VGA interface for video printer,
Video interface for external monitor
/
QUICK SPECS
- What's Included
- Physical Details
- Tech Specification

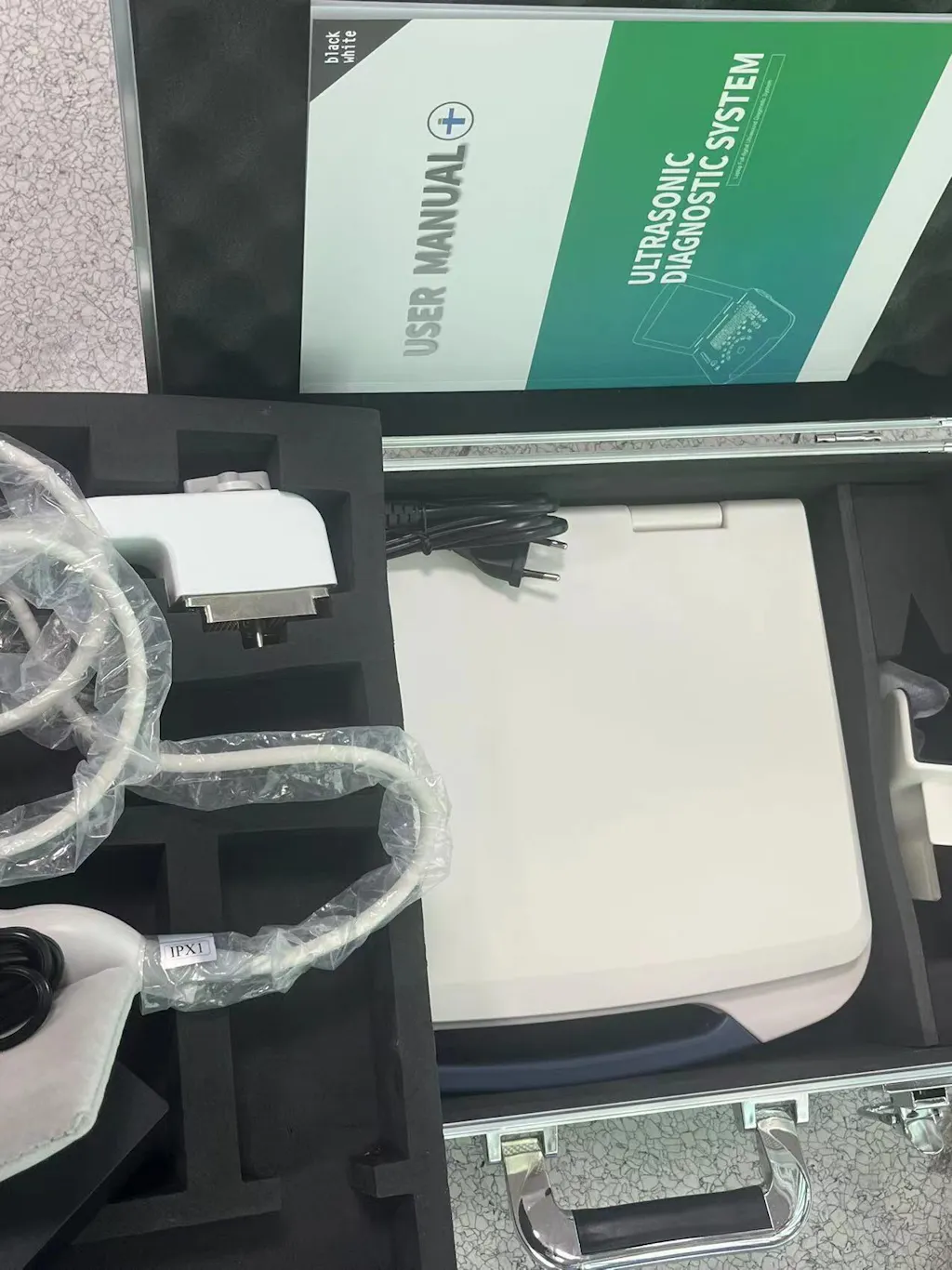

1 x Main unit
Your choice of probe(s)
1 x Unit suit case
User Manual
1 x AC/DC adapter
1 x Power cord
1 x Probe Holder
1 x Medical ultrasound gel
(This gel is only available in the US, will deliver separately.)
Product

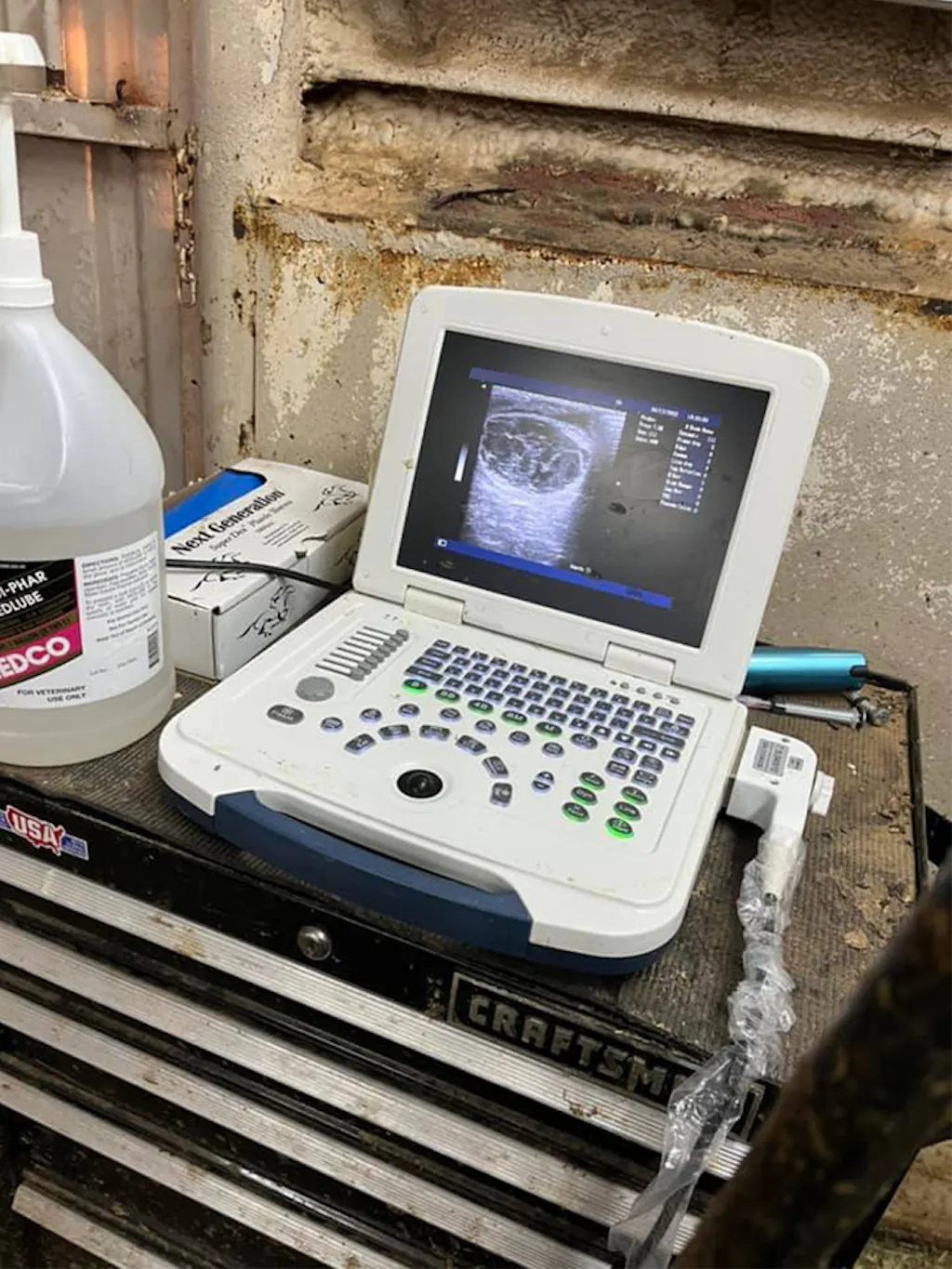

VU10 Laptop Veterinary Ultrasound
Dimension
48.5cm x 39.3cm x 23.9cm (19.1'' x 15.5'' x 9.41'')
Weight
4.7 kg (10.362 lbs)
Display
12.1-inch LCD high-resolution display
Ambient Temperature
5℃~40℃
Waterproof
IPX7
Battery
Capacity: 8800 mAh
Life: 4 hours
External Interface
Video interface, VGA interface, USB2.0 interface
Display Mode
B, B + B, B + M, B + M / M, M, 4B
Gray Scale
256 levels
Probe Central Frequency
3.5MHz (Convex Probe)
7.5 MHz (Rectal Probe)
6.5 MHz (Micro-Convex Probe)
Scan Depth
40-307mm
Languages
English, French, Spanish, Chinese, Portuguese, Russian.
Cine Loop
≥500 Frames
Image Storage
≥64 Frames
Storage
≥7000 Images (8GB Storage)
Body Position Marks
≥ 17
Reports
Obstetric, Cardiac Reports
Image Zoom
7 levels: 0.9,1.0,1.1,1.2,1.3,1.5,2.0
Case Information
Up to 255
Pseudo Colors Display
8 Kinds
Reviews, Q&A
Maintenance Warranty
Our company guarantees the new instrument on the material and technological qualification for this product within 24 months since the purchasing day, while consumables are not included in the guarantee. This warranty is inapplicable to the products undergoing any modifications, disassembles, refittings or self-repairings without the permission of our company. We're not responsible of the products damaged by accidents such as fire, thunder and lightning, flood and other disasters, intentional damage, improper installation and improper usage.
30-Day Money Back Guarantee
At any time within 30 days of receiving your order, you are not 100% satisfied, you may return it to us for a refund. If you bought the product from www.getwellue.com, you can return it to us. Your payment card will be credited upon receipt of the returned merchandise. Any items damaged due to reasons not covered under warranty cannot be accepted back for refund under our 30-Days Money Back Guarantee. If you are sure you want to return the goods, please contact us at first at support@getwellue.com. We provide 24/7 ticket and email support. Please contact us if you need assistance. Note: Shipping and handling charges are not refundable. If there are freight charges incurred during the return, you will be responsible for covering them personally.
Shipping
For countries and regions we can deliver to, we offer free shipping. The referenced transit time is 2-8 business days. In case of shortage, please refer to the statement of product arrival status at the top of the page. To check the countries and regions we can deliver to, please refer to our Shipping Policy. You can track your order status here: https://getwellue.com/pages/track-order. Please note that there may be exceptions for a few hard-to-reach areas. In such cases, additional shipping charges may apply. If you are located in an area that is subject to additional shipping charges, this information will be provided during the checkout process. If you have any questions or concerns, please feel free to contact our customer support team for assistance.
