- Gestational sac diameter (GS)
- Crown-rump length (CRL)
- Head circumference (HC)
- Biparietal diameter (BPD)
Simple Pregnancy Check
One-key OB measurement, easy and rapid diagnosis for farm breedings.
Large Screen Size
Wide field of view, high brightness, high contrast, clear and delicate images.
Multi Languages
English, French, Spanish, Chinese, Portuguese, Russian.
IPX7 Waterproof
Easy to clean, designed to work in challenging farm environments.
Wide Range of Scan Depth
Scanning depth range from 50mm to 242mm, flexibly adjust according to the scanning location.
32G Memory Chip Storage
The maximum storage capacity is approximately 28,000 scanned images.
Simple Pregnancy Check
One-key OB measurement, easy and rapid diagnosis for farm breedings.
Large Screen Size
Wide field of view, high brightness, high contrast, clear and delicate images.
Multi Languages
English, French, Spanish, Chinese, Portuguese, Russian.
IPX7 Waterproof
Easy to clean, designed to work in challenging farm environments.
Wide Range of Scan Depth
Scanning depth range from 50mm to 242mm, flexibly adjust according to the scanning location.
32G Memory Chip Storage
The maximum storage capacity is approximately 28,000 scanned images.
EasILY Detect Different Stages of Pregnancy
Early Pregnancy Detection
Various Measurement
Clear View of Uterus

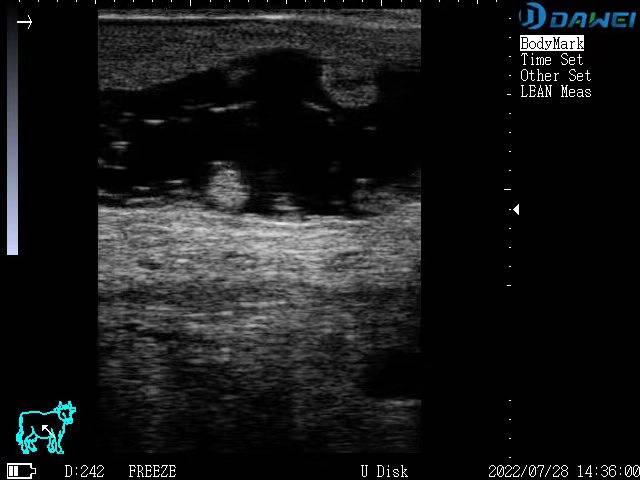

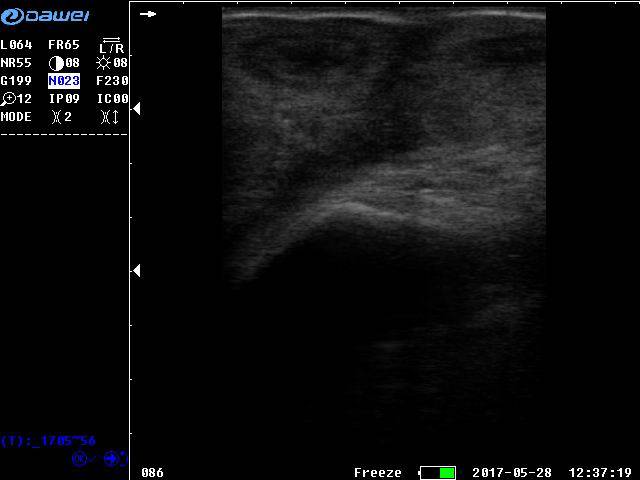

No Pregnancy Uterus of Cattle

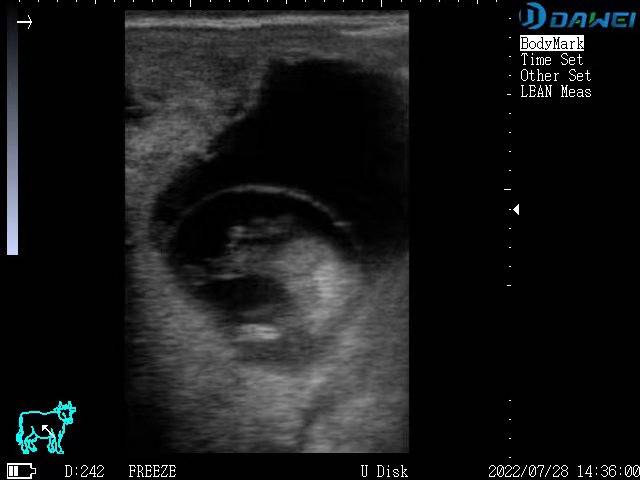

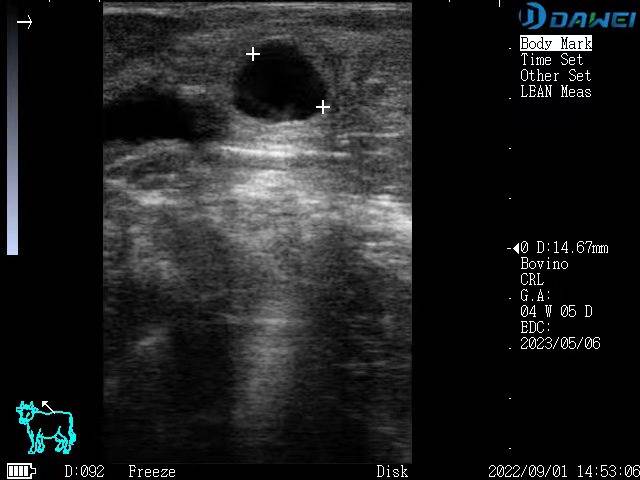

Pregnancy 33 Days Uterus of Cattle

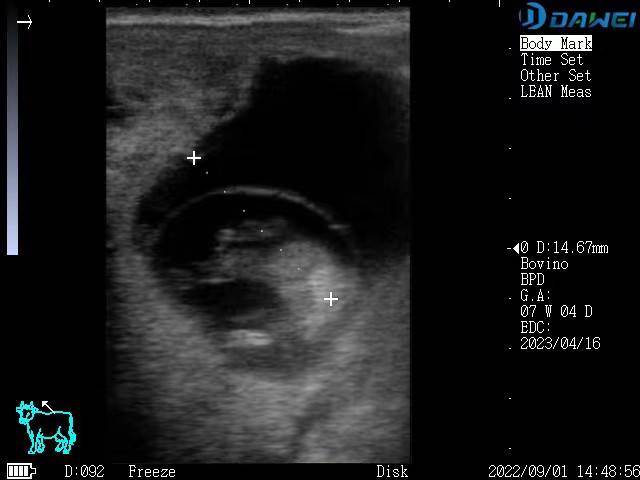

Pregnancy 53 Days Uterus of Cattle
Effortless gestational age calculation
Automatically displays the corresponding gestational age (gestational week) and estimated due date (EDD) by measuring various parameters of different animals.
Disease Diagnosis
Diverse applications enhance ultrasound versatility.
In addition to monitoring pregnancy, it can also perform abdominal organs examination of animals, detect basic diseases and follicle development, etc. This has greatly improved reproductive management for veterinarians, allowing for more accurate diagnoses and improved breeding programs.
Measurement functions: distance, perimeter, area, heart rate, obstetrics.
Cattle gestational sac and distance measurement
4 segments of electronic focus, adjustable focus position
16 levels of image magnification
255 frames movie playback, supports continuous playback or frame-by-frame view
Disease Diagnosis
Diverse applications enhance ultrasound versatility.
In addition to monitoring pregnancy, it can also perform abdominal organs examination of animals, detect basic diseases and follicle development, etc. This has greatly improved reproductive management for veterinarians, allowing for more accurate diagnoses and improved breeding programs.
Measurement functions: distance, perimeter, area, heart rate, obstetrics.
Cattle gestational sac and distance measurement
4
4 segments of electronic focus, adjustable focus position
16
16 levels of image magnification
255
255 frames movie playback, supports continuous playback or frame-by-frame view
Cattle gestational sac and distance measurement
Cattle gestational sac and distance measurement
Disease Diagnosis
Diverse applications enhance ultrasound versatility.
In addition to monitoring pregnancy, it can also perform abdominal organs examination of animals, detect basic diseases and follicle development, etc. This has greatly improved reproductive management for veterinarians, allowing for more accurate diagnoses and improved breeding programs.
Measurement functions: distance, perimeter, area, heart rate, obstetrics.
4
4 segments of electronic focus, adjustable focus position
16
16
16 levels of image magnification
255
255 frames movie playback, supports continuous playback or frame-by-frame view
Ultrasound Review on Pregnant Livestock
Pretty Good Machine with Pretty Good Details!
"It's actually a pretty good machine and you can see pretty good details. I'm liking this machine with the different colors available where you actually see the embryos that way."
- Jason from Clear Creek Farm

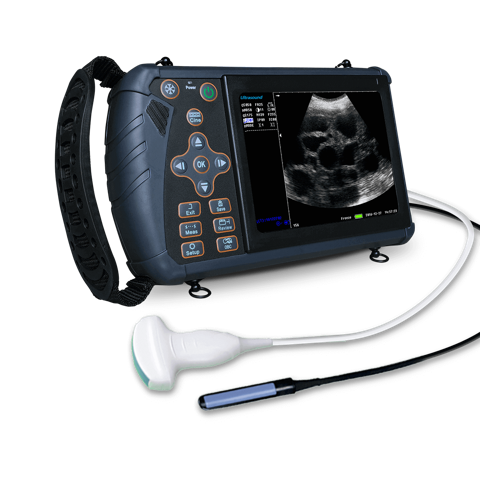

Discover Better Diagnostic Information With Electronic Transducer
Supports both rectal and convex transducer probes. Electronic probes with 80 elements offers clearer, less noisy images compared to traditional mechanical sector probes. The rectal probe specializes in reproductive and abdominal imaging for large animals, the convex probe with curved array could provide a wider field of view and versatility for in vitro animal diagnostics.
Sharper Image Edges
High Contrast And Resolution for Improved Visualization
Versatile for Various Diagnostic Purposes
Cleaner Echo-Free Zone
Sharper Image Edges
High Contrast And Resolution for Improved Visualization
Cleaner Echo-Free Zone
Versatile for Various Diagnostic Purposes

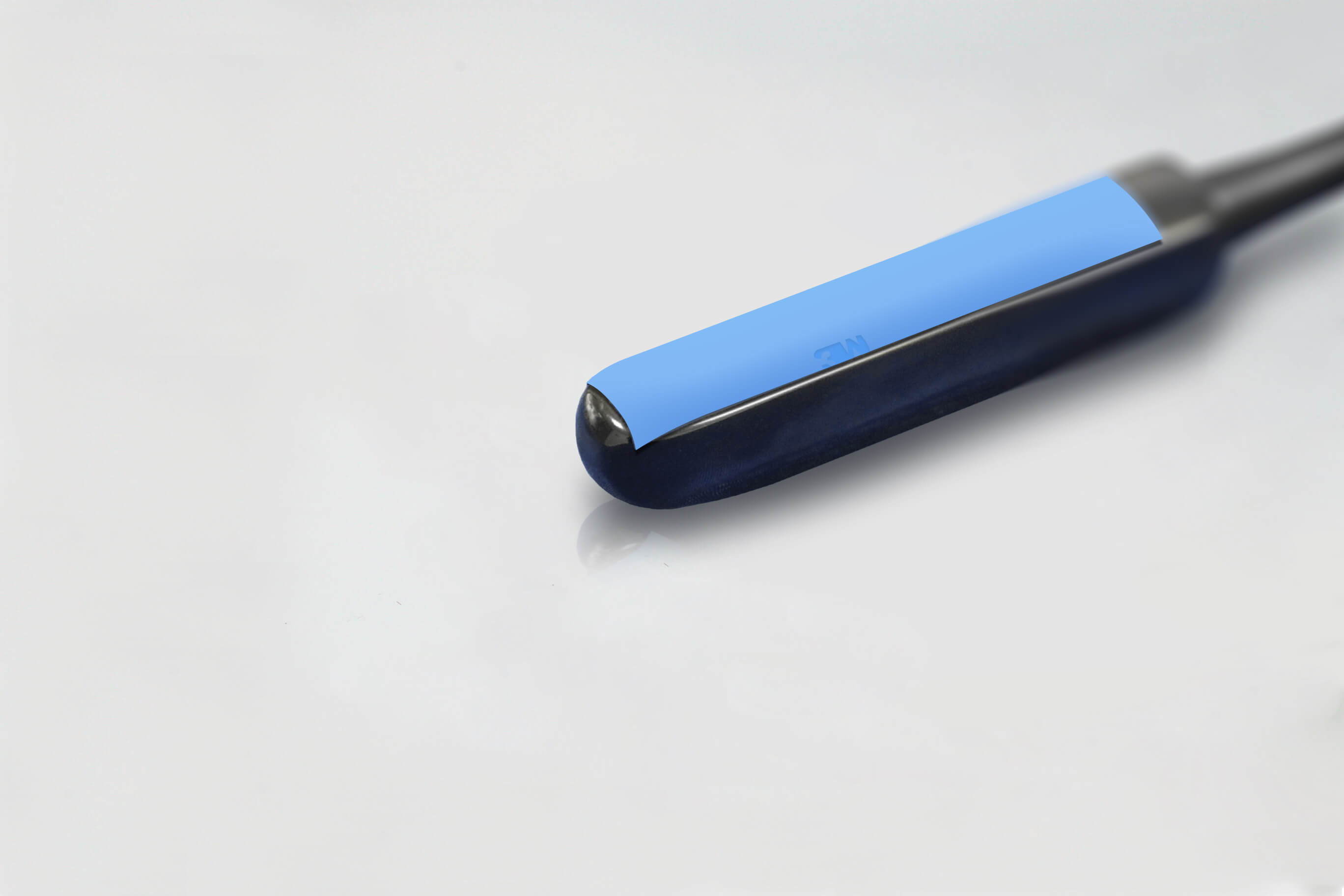

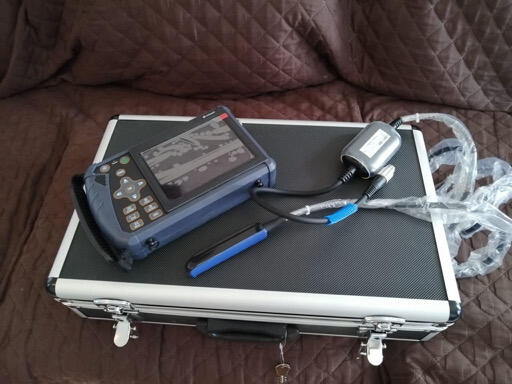

Rectal probe
Frequency: 5.0MHz - 7.0MHz
Application: pregnancy tests, gestational age calculation, fetal sexing for large animals, such as horses, cows and llamas (do not support gestational age calculation).

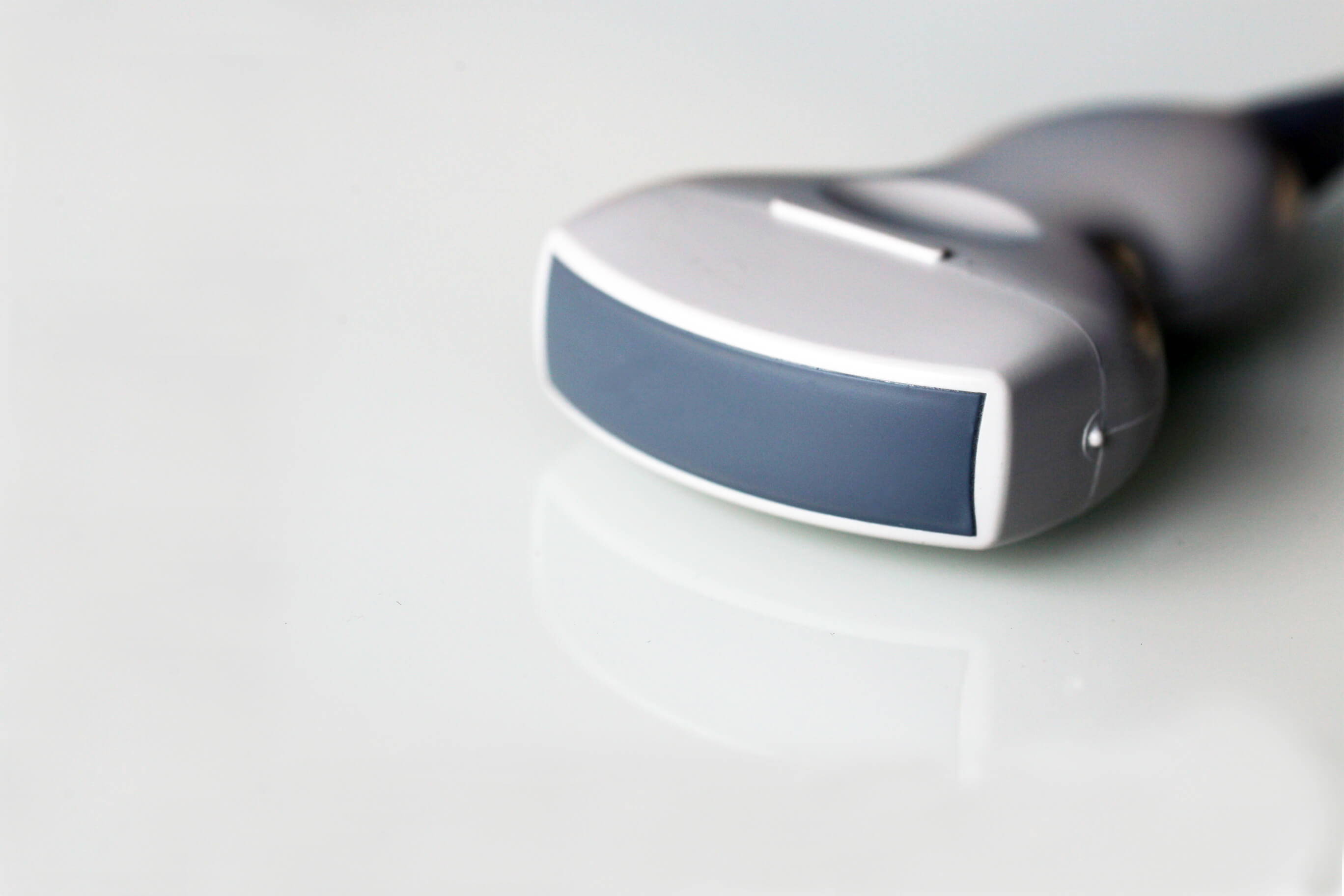

Convex probe
Frequency: 2.5MHz - 5.0MHz
Application: pregnancy diagnosis, gestational age calculation for medium-sized animals, such as sheep, goats, pigs, felines, and dogs (≥22lb/10kg).
24 Kinds of
Pseudo-Color Modes
Enhances detail recognition and precise embryo visualization with 24 kinds of Pseudo-Color modes.

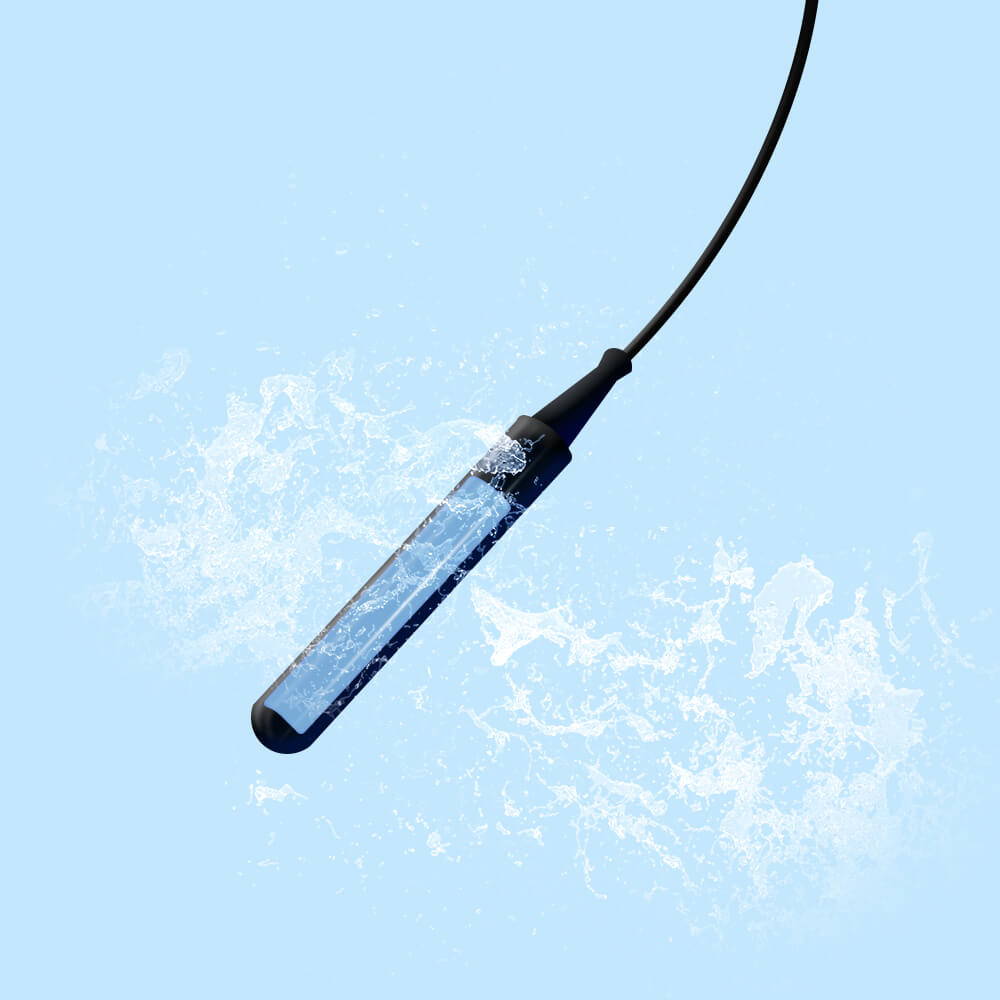

Built for Challenging Farm Environments
Our ultrasound probes are durable enough for clinical operations in farm environments. With a waterproof level of IPX7 rating, there's no need worrying about spills or even submersion in water or liquid.
*IPX7: Can be submerged up to 1 meter in water for 30 minutes. Do not immerse the main unit into water.
Built for Challenging Farm Environments
Our ultrasound probes are durable enough for clinical operations in farm environments. With a waterproof level of IPX7 rating, there's no need worrying about spills or even submersion in water or liquid.
*IPX7: Can be submerged up to 1 meter in water for 30 minutes. Do not immerse the main unit into water.
MULTIPLE MEASUREMENT PARAMETERS AVAILABLE
Gestation age is calculated by the following parameters.
Canine
Bovine
- Body length (BL)
- Length of uterus (BUD)
Equine
- Gestational sac diameter (GS)
- Head circumference (HC)
Ovine
- Crown-rump length (CRL)
Swine
- Heart length (HL)
- Stomach length (SL)
Feline
- Head circumference (HC)
- Biparietal diameter (BPD)
Obstetric Calculation Guidence
Canine
- Gestational sac diameter (GS)
- Crown-rump length (CRL)
- Head circumference (HC)
- Biparietal diameter (BPD)
Bovine
- Body length (BL)
- Length of uterus (BUD)
Equine
- Gestational sac diameter (GS)
- Head circumference (HC)
Ovine
- Crown-rump length (CRL)
Swine
- Heart length (HL)
- Stomach length (SL)
Feline
- Head circumference (HC)
- Biparietal diameter (BPD)
Obstetric Calculation Guidence

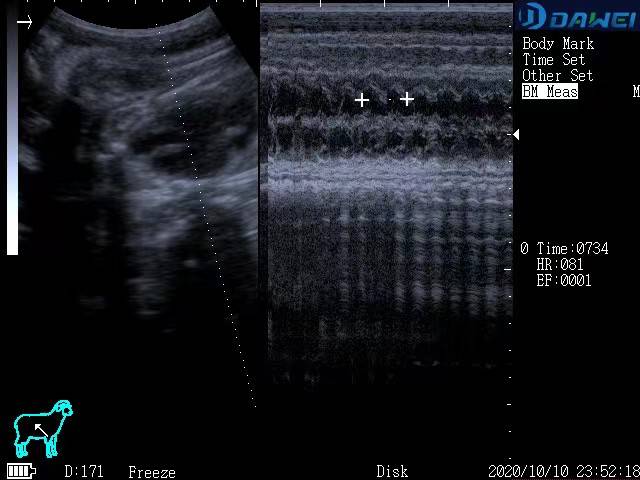

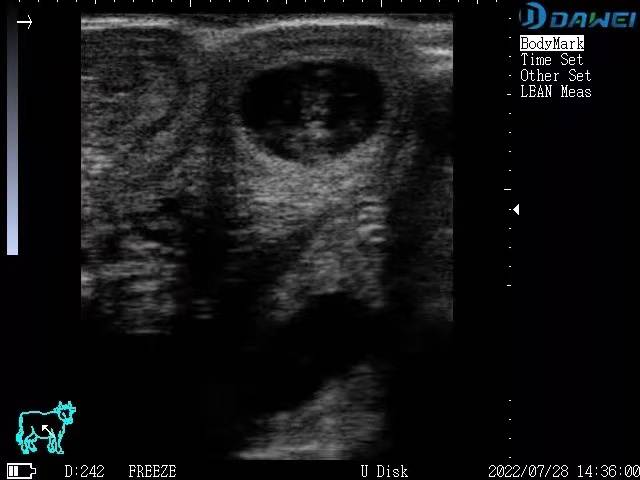

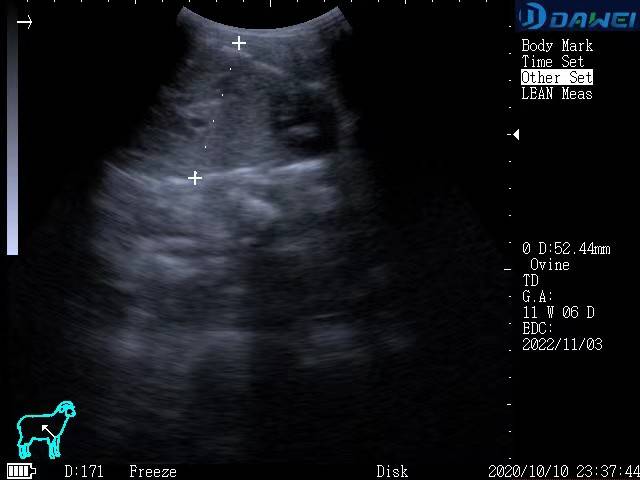

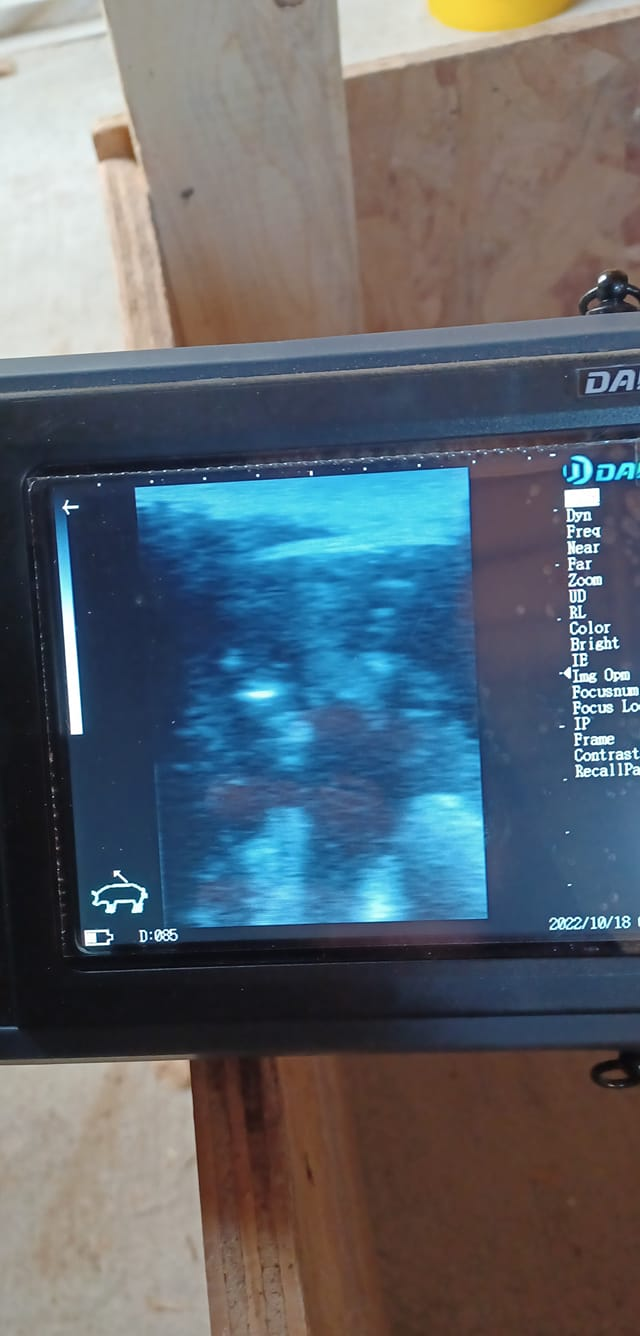

Scanning Images Gallery
High-resolution images, reliable and precise scanning
Why Use Ultrasound for Livestock Pregnancy Diagnosis?

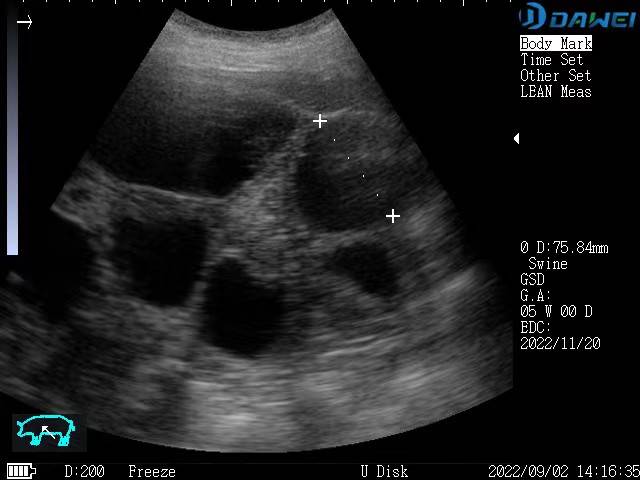

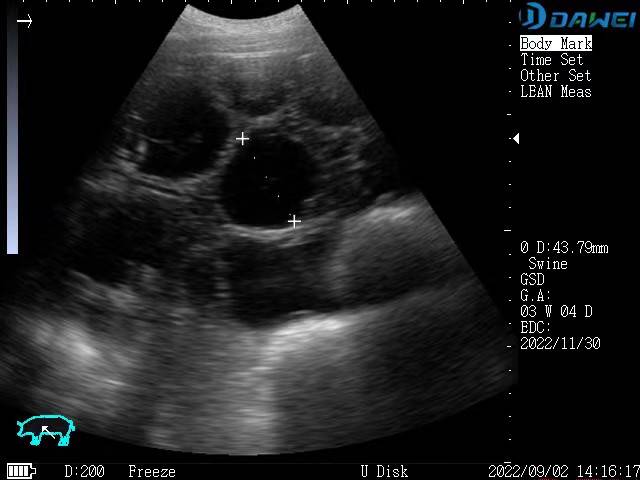

Swine Pregnancy Check
According to U.S. Pork Center of Excellence, ultrasound is justified for reducing the costs in pig production. Using ultrasound for pregnancy diagnosis can improve reproductive management of the herd and to reduce costs associated with non-productive days. Furthermore, the tool can help detecting regular returns to estrus. In the long run, it can reduce costs of daily sow maintenance.
Swine Pregnancy Check
According to U.S. Pork Center of Excellence, ultrasound is justified for reducing the costs in pig production. Using ultrasound for pregnancy diagnosis can improve reproductive management of the herd and to reduce costs associated with non-productive days. Furthermore, the tool can help detecting regular returns to estrus. In the long run, it can reduce costs of daily sow maintenance.
Choose Your Veterinary Ultrasound
Compare 3 veterinary ultrasounds before you make your purchase.

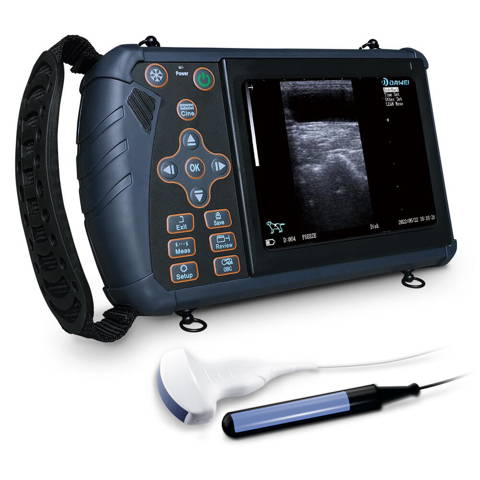

Portable Veterinary Ultrasound
start from
$1039.00 $1599.00
Application
Vet Clinics, Pets, Various Livestock
Pets, Various Livestock
Pets, Medium-Sized Livestock
Probe Elements
96 Elements
80 Elements
64 Elements
Probe
Supports Rectal&Convex&Micro-Convex electronic ultrasound transducer probes
Suppoorts Rectal&Convex electronic ultrasound transducer probes
Mechanical sector probe
Scan Depth
40-307mm
Up to 230mm
Up to 208mm
Screen Size
12.1 inches
5.6 inches
5.6 inches
Display Mode
B, B+B, B/M, M, 4B
B, B+B, B/M, M, 4B
B,B+B,4B
Puncture Guidance
Yes
/
/
Language
English, French, Spanish, Chinese, Portuguese, Russian
English, French, Spanish, Chinese, Portuguese, Russian
English, Chinese
Pseudo-Color
8 kinds of Pseudo-Color
24 kinds of Pseudo-Color
8 kinds of Pseudo-Color
Video Output
VGA interface for video printer,
Video interface for external monitor
/
/
Choose Your Veterinary Ultrasound
Portable Veterinary Ultrasound
start from
$1039.00
$1599.00
Application
Vet Clinics, Pets, Various Livestock
Pets, Various Livestock
Pets, Medium-Sized Livestock
Probe Elements
96 Elements
80 Elements
64 Elements
Probe
Supports Rectal, Convex, Micro-Convex electronic ultrasound transducer probes
Suppoorts Rectal&Convex electronic ultrasound transducer probes
Mechanical sector probe
Scan Depth
40-307mm
Up to 230mm
Up to 208mm
Screen Size
12.1 inches
5.6 inches
5.6 inches
Display Mode
B, B+B, B/M, M, 4B
B, B+B, B/M, M, 4B
B,B+B,4B
Puncture Guidance
Yes
/
/
Language
English, French, Spanish, Chinese, Portuguese, Russian
English, French, Spanish, Chinese, Portuguese, Russian
English, Chinese
Pseudo-Color
8 kinds of Pseudo-Color
24 kinds of Pseudo-Color
8 kinds of Pseudo-Color
Video Output
VGA interface for video printer,
Video interface for external monitor
/
/
Why choose ours?
Dawei Portable Veterinary Ultrasound
start from $1,599
Veterinary Ultrasound on Amazon
$1,000 plus
Probe
Electronic transducer provides dynamic focusing

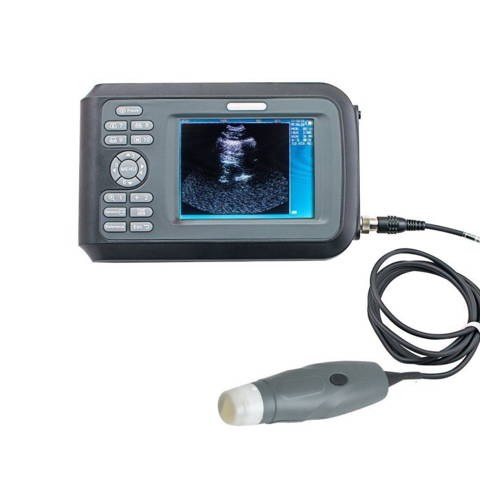

Mechanical sector probe may cause imaging louder noises
Frequency
Scan at different frequencies
Only scan at a fixed frequency
Imaging Modes
B, B+B, B/M
B, B+B
Depth
Up to 230mm
Up to 190mm
Animal Size
Equine, Bovine, Ovine, Swine, Canine (all sizes of animals)
Swine, Ovine, Dogs (small animals)
Battery
≥ 6 hours
up to 4 hours
Drop-resistant
Yes
No

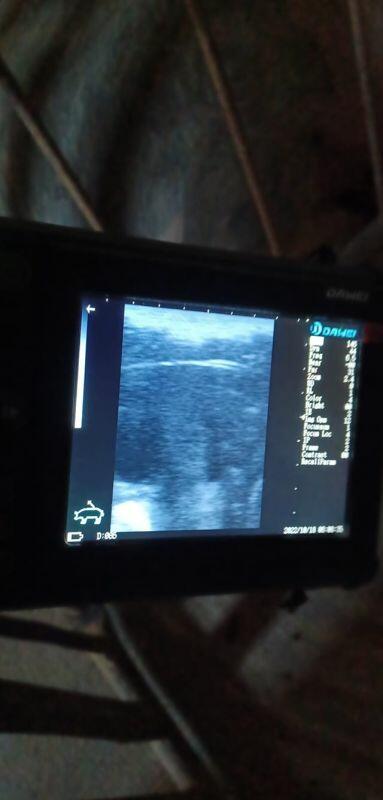

What Our Customers Say
Why choose ours?
Dawei Portable Veterinary Ultrasound
start from $1,599
Veterinary Ultrasound on Amazon
$1,000 plus
Probe
Electronic transducer provides dynamic focusing
Mechanical sector probe may cause imaging louder noises
Frequency
Scan at different frequencies
Only scan at a fixed frequency
Imaging Modes
B, B+B, B/M
B, B+B
Depth
Up to 230mm
Up to 190mm
Animal Size
Equine, Bovine, Ovine, Swine, Canine (all sizes of animals)
Swine, Ovine, Dogs (small animals)
Battery
≥ 6 hours
up to 4 hours
Drop-resistant
Yes
No
Quick Start Guide
1
Boot the device
Press and hold the soft switch key on the device panel for more than three seconds. The power indicator on the keyboard lights up, the startup interface appears, and the scan work status is entered later.
2
Place The Probe
For medium-sized animals, apply the gel on the skin, and place the convex probe on the belly of the animal to scan.

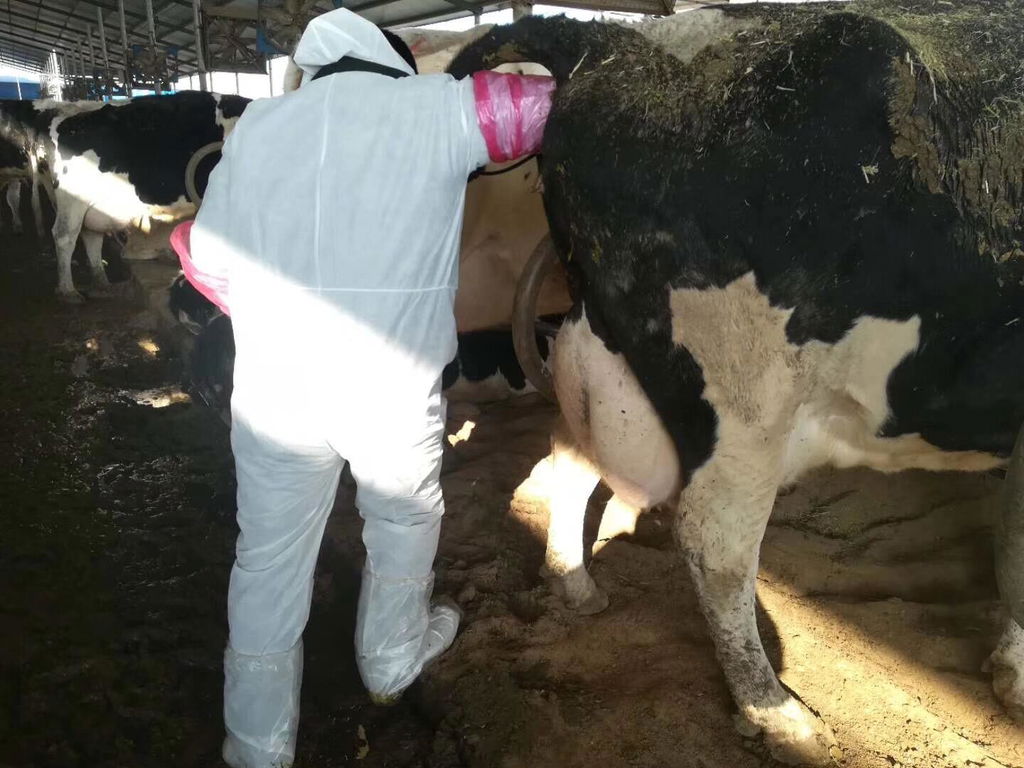

For large animals, before using the rectal probe, empty the rectum of the mare/cow, and introduce the rectal probe into the rectum with a gloved arm to observe.
*soybean or castor oil, olive oil, or kitchen detergent can be used instead of the gel.
3
Unfreeze the screen and enter the scan mode, the screen will display the tissue cross-sectional sonogram, move the probe appropriately to find and determine the best position for the detection depth. At the same time, adjust the brightness, dynamics, total gain, near field and far field appropriately to obtain the optimal image.
4
Save&Playback Images
Make sure that the TF card is correctly inserted into the device before storing the image. After you have a satisfactory image, press the “SAVE” button to save the current image. Enter freeze mode, and press the “Movie Playback” button to start playback images.
1
Boot the device
Press and hold the soft switch key on the device panel for more than three seconds. The power indicator on the keyboard lights up, the startup interface appears, and the scan work status is entered later.
3
Adjust The Monitor
Unfreeze the screen and enter the scan mode, the screen will display the tissue cross-sectional sonogram, move the probe appropriately to find and determine the best position for the detection depth. At the same time, adjust the brightness, dynamics, total gain, near field and far field appropriately to obtain the optimal image.
2
Place The Probe
For medium-sized animals, apply the gel on the skin, and place the convex probe on the belly of the animal to scan.
For large animals, before using the rectal probe, empty the rectum of the mare/cow, and introduce the rectal probe into the rectum with a gloved arm to observe.
*soybean or castor oil, olive oil, or kitchen detergent can be used instead of the gel.
4
Save & Playback Images
Make sure that the TF card is correctly inserted into the device before storing the image. After you have a satisfactory image, press the “SAVE” button to save the current image. Enter freeze mode, and press the “Movie Playback” button to start playback images.
Operation Tutorial
Frequently Asked Questions
How to adjust the parameters to obtain higher resolution images?
- Equine
- Swine/Ovine/Caprine
- Bovine
Gain 189
Dyn 89
Freq 7.5
Near -25
Far 25
Zoom 2.2
UD 0
RL 0
Color 4
Bright 00
IE 2
Img Opm 0
Focus Num 1
Focus Loc 5
IP 2
Frame 2
Contrast 00
Gain 232
Dyn 46
Freq 6.5
Near -31
Far 00
Zoom 1.3
UD 0
RL 1
Color 4
Bright 00
IE 2
Img Opm 0
Focus Num 2
Focus Loc 4
IP 2
Frame 2
Contrast 00
Gain 150
Dyn 40
Freq 7.5
Near -31
Far 31
Zoom 2.2
UD 0
RL0
Color 4
Bright 00
IE 2
Img Opm 0
Focus Num 1
Focus Loc 5
IP 3
Frame 2
Contrast 00
Can the unit be hooked up to a TV so the screen is larger for viewing?
It could not support sync to the TV screen for the time being. However, you could store images via USB and then check images on your devices like home screen TV later.
Can I print the image?
Yes , you need to save the picture first , then take out the SD card , you can print the photo.
Can you use it on a llama?
Yes, you can choose the rectal probe, which is ideal for pregnancy detection in large animals.
How long does it take to see animal embryos clearly? How to confirm gestational age and due date?
Note: This form is for reference only
Does rectal prove need plastic sleave over probe?
Usually, the use of a convex probe for in vitro inspection does not require plastic sleeves and only needs to use gel to ensure that the probe is in complete contact with the monitoring site. When using the rectal probe, it must be inserted into the animal's body, and there is no need to use gel. If you want to protect your hands, please use plastic gloves. If you want to use a plastic cover to protect the probe, we recommend using something like a condom that can be completely attached to the probe without leaving any air gaps, so that the strong echoes brought by the air will not affect the scanning results.
How to set up machine?
1. Probe Installation
Install the probe to the machine and tighten it.
2. Turn ON/OFF
Long press the “ON/OFF” key to turn on the machine. Enter into the operation system.
3. Switch The Probe
Press the freeze button,select the other set, press the OK button. Select rectal or convex probe in the probe options, then shut it down and restart.
How to measure animals' ovarian?
1. Press the “Dis” button and two measurement cursors appear on the screen. 2. Press the “OK” button to convert the movable measurement cursor.
3. Use the arrow keys to move the measurement cursor to the starting point of the distance to be measured, and then press the "OK" button to determine the starting point of the distance to be measured.
4. Move another cursor to the end of the distance to be measured, press “OK” to complete the measurement and exit.
5. To continue measuring distances, repeat steps 1–4 to measure up to 4 sets of data. The result of the measurement is displayed on the left side of the screen. The four sets of data are D1, D2, D3, and D4, respectively, and the unit is mm.
How to operate obstetrical measurement?
Press the “OBC” button to enter the obstetric measurement mode. According to the system settings, the corresponding obstetric measurement menu will appear on the right side, and the measurement will be performed according to the conventional measurement method. The measurement result is displayed at the bottom of the right menu. Press “Exit” to exit the current measurement item, continue to press ↑, ↓ to select other measurement items.
We're Helping Many Farms and Vets Around The World.
Related Articles
Portable ultrasound scanner for animal pregnancy, what is the benefit?
Because of their affordability, efficiency, reliability, and non-invasiveness, ultrasounds are the choice of many veterinary practices, breeders, and farmers to check their animals for pregnancy.
Is Ultrasound Necessary For The Pregnant Dog？
Dog pregnancy can be confusing and stressful. In general, the average period of canine pregnancy will last about 2 months. However, it is difficult to predict the timing of delivery because the breeding date doesn’t always match up with the conception date.
How Does Ovarian Volume Affect Pregnancy In Mammals?
Studies have shown that ovarian volume can be used as a predictor of pregnancy outcomes in some mammalian species. For example, in cows, ovarian volume has been found to be positively correlated with the number of eggs produced per cycle, as well as with the success rate of artificial insemination.
Portable ultrasound scanner for animal pregnancy, what is the benefit?
Because of their affordability, efficiency, reliability, and non-invasiveness, ultrasounds are the choice of many veterinary practices, breeders, and farmers to check their animals for pregnancy.
Is Ultrasound Necessary For The Pregnant Dog？
Dog pregnancy can be confusing and stressful. In general, the average period of canine pregnancy will last about 2 months. However, it is difficult to predict the timing of delivery because the breeding date doesn’t always match up with the conception date.
How Does Ovarian Volume Affect Pregnancy In Mammals?
Studies have shown that ovarian volume can be used as a predictor of pregnancy outcomes in some mammalian species. For example, in cows, ovarian volume has been found to be positively correlated with the number of eggs produced per cycle, as well as with the success rate of artificial insemination.
Specifications
- Model: Vet 6- S1
- Color: BW/Pseudo-color
- Mode: B/BB/BM/M/4B
- Measurement: distance, circumference, area, heart rate, gestational age (swine, equine, bovine, ovine, feline, canine)
- Cine loop: 255 frames
- Monitor: 5.6 inch LED
- Storage: 32G
- Built-in battery: 4 hours
- Language: English, French, Spanish, Chinese, Portuguese, Russian
Dimensions
- Product Weight: 800g (1.8lb)
- Product Size: 24 X 12 X 4.5cm
Package includes
- 1 x Main unit
- Your choice of probe(s)
- 1 x Belt
- 1 x Unit suit case
- 1 x USB 2.0 drive
- 1 x AC/DC adapter
- 1 x Power cord
- 1 x User manual
- Warranty card
Certificates
Reviews, Q&A
Customer Reviews
Based on 19 reviews
79%
(15)
16%
(3)
5%
(1)
0%
(0)
0%
(0)
S
I use the ultrasound to confirm pregnancy in cows. It's a pretty useful tool. In this way, we can stay at home and save on an extra trip to the vet clinic. Usually we call the vet to come to my place and that will be additional bills to pay. I'm glad i have this ultrasound monitor. Pregnancy images are pretty straightforward.
M
Bought this scanner for my equine farms. The operation process is simple and direct. I would say a reasonable investment for my equines. I put the video attached, you can see the image quality is pretty solid.
J
I have been looking for one for years good ones run $2500 to $8000 when I seen this one come out and the price first thing i thought oh this is a scam no way the quality and the price being $1,380 this is a scammer, well I said screw it I gotta try and see if it's a scam in 5 days I had it the quality is unbelievable, we just check our showpigs so we only needed the covex why the price was cheaper! For the money it's very good quality.
R
I purchased this to ultrasound my goats to check for pregnancy. It is easy to use and gets the job done. It’s not the best quality of screen display compared to the $3,000-$5,000 ultrasounds, but for the money it’s good quality. The bag was a plus. Has worked great for me so far with no issues.
J
We asked a friend to come over, who's skilled at veterinary ultrasound and he was able to get hands on the machine immediately. It was easy and small to carry. The package came with a nice carrying case. I'd say it's a fair investment for my cows.
B
I purchased this machine for viewing pregnancy in swines. Me and my husband own a pig farm and we think it will be much more effective to get a pig pregnancy calculator. With the help of this ultrasound, we can clearly see multiple fluid filled pockets within the uterus. The images are direct and simple, and the user manual gives us some guide to use the probe. Great tool for farm owners!
D
With us being new and inexperienced at reading ultrasounds, it was easy to set up and use. we have used it to confirm if our 8 artificially inseminated (AI) ewes are pregnant. It was great to see the fetuses move around and to calculate when they would be due. They all lined up with the projected date based on the AI procedure.
L
I own a dozen cows on my farm in San Jose and I got a Daiwi Ultrasound recently through online shopping. It's fast shipping and well packaged as advertised. I tried it on a pregnant cow under the instruction, and it was pretty much what I expected, but I need to keep learning to get a better grasp of how it works.
M
Just brought the equipment to our new farm in Nicaragua. The veterinarian who does not own an ultrasonic test instrument was very pleased. It was useful from first day on. Highly recommended. We will buy another one for the second farm.
Hi Markus,
Thanks for choosing Wellue and glad to hear that you like our Portable Veterinary Ultrasound!
Wellue
W
This is a great machine. When it arrived I charged it and used it that afternoon to scan some registered ewes. I really like the color changing screen and how easy it is to operate. The image is clear and picks up multiples with ease.
Hi Wade,
Thanks for choosing Wellue and our Veterinary Ultrasound, welcome to share more of your scanning findings with us!
Cheers!
Wellue
Maintenance Warranty
Our company guarantees the new instrument on the material and technological qualification for this product within 24 months since the purchasing day, while consumables are not included in the guarantee. This warranty is inapplicable to the products undergoing any modifications, disassembles, refittings or self-repairings without the permission of our company. We're not responsible of the products damaged by accidents such as fire, thunder and lightning, flood and other disasters, intentional damage, improper installation and improper usage.
30-Day Money Back Guarantee
At any time within 30 days of receiving your order, you are not 100% satisfied, you may return it to us for a refund. If you bought the product from www.getwellue.com, you can return it to us. Your payment card will be credited upon receipt of the returned merchandise. Any items damaged due to reasons not covered under warranty cannot be accepted back for refund under our 30-Days Money Back Guarantee. If you are sure you want to return the goods, please contact us at first at support@getwellue.com. We provide 24/7 ticket and email support. Please contact us if you need assistance. Note: Shipping and handling charges are not refundable. If there are freight charges incurred during the return, you will be responsible for covering them personally.
Shipping
For countries and regions we can deliver to, we offer free shipping. The referenced transit time is 2-8 business days. In case of shortage, please refer to the statement of product arrival status at the top of the page. To check the countries and regions we can deliver to, please refer to our Shipping Policy. You can track your order status here: https://getwellue.com/pages/track-order. Please note that there may be exceptions for a few hard-to-reach areas. In such cases, additional shipping charges may apply. If you are located in an area that is subject to additional shipping charges, this information will be provided during the checkout process. If you have any questions or concerns, please feel free to contact our customer support team for assistance.
