12-Lead ECG Based on A Tablet

Portable Interpretive 12-lead ECG machine based on a tablet with large 7" touchscreen

*Select with or without the ECG PC software

StandardStandard+ECG Software
$1,599.00$1,599.00
12-lead ECG machine based on a tablet

12-Lead ECG Based on A Tablet

Portable ECG machine based on a tablet with large 7-inch touchscreen, automatic interpretation for up to 300s waveforms

*Select with or without the ECG PC software

StandardStandard+ECG Software
$1,599.00$1,599.00

*For use by qualified, trained or licensed healthcare professionals.

portable ECG machine

Portable ECG Machine

Handy 12-channel resting ECG device with a weight of 0.5 kg.
12-lead ECG machine with 7-inch touchscreen

7" LCD Touchscreen

LCD screen for crisp waveforms display and easy navigation.
12-lead ECG machine with auto interpretation

Automatic Analysis

Auto interpretation and analysis for up to 300s ECG waveforms.
12-lead ECG machine suitable for adults, kids and infants

For All Ages

For adults, children and infants.
certification authority

Certification Authority

FDA & CE certificated.
12-lead ECG machine with built-in storage for smart data management

Built-in Storage

Internal memory of 3,000 files in multiple formats.
12-lead ECG machine with rechargeable battery

Rechargeable Battery

4 hours of continuous use with a single full charge.
the 12-lead ECG machine can diaplay multiple languages
Multiple Languages
English, French, Spanish, Italian, Czech and more.
portable ECG machine

Portable ECG Machine

Handy 12-channel resting ECG device with a weight of 0.5 kg.
12-lead ECG machine based on a tablet with 7" LCD touchscreen

7" LCD Touchscreen

LCD screen for crisp waveforms display and easy navigation.
12-lead ECG machine with automatic interpretation

Automatic Analysis

Auto interpretation and analysis for up to 300s ECG waveforms.
12-lead ECG machine for adults, kids and infants

For All Ages

For adults, children and infants.
certification authority

Certification Authority

CE and FDA certificated.
12-lead ECG machine with built-in storage for smart data management

Built-in Storage

Internal memory of 3,000 files in multiple formats.
12-lead ECG machine with rechargeable battery

Rechargeable Battery

4 hours of continuous use with a single full charge.
12-lead ECG machine can display multiple languages
Multiple Languages
English, French, Spanish, Italian, Czech and more.
handy 12-channel ECG device based on a tablet

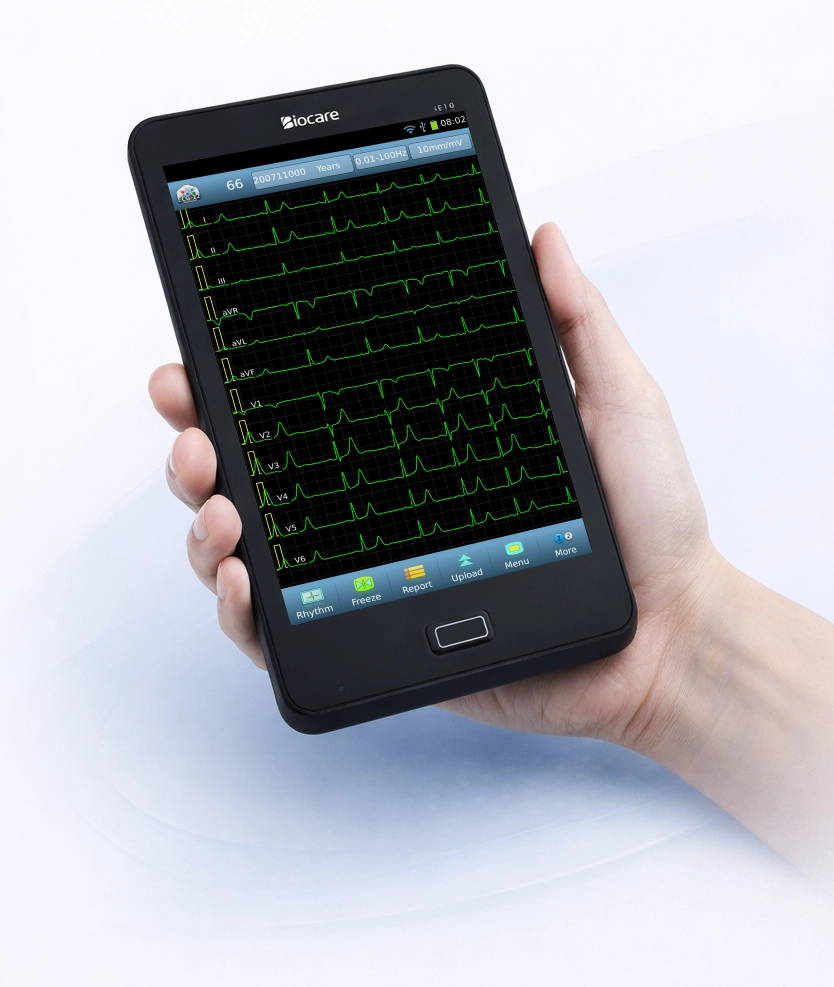

Portable ECG Machine Based on A Tablet

The device is a mobile ECG machine in the shape of a tablet, with the weight of 0.5kg and the compact dimensions of 7.64" × 4.61" × 0.98".

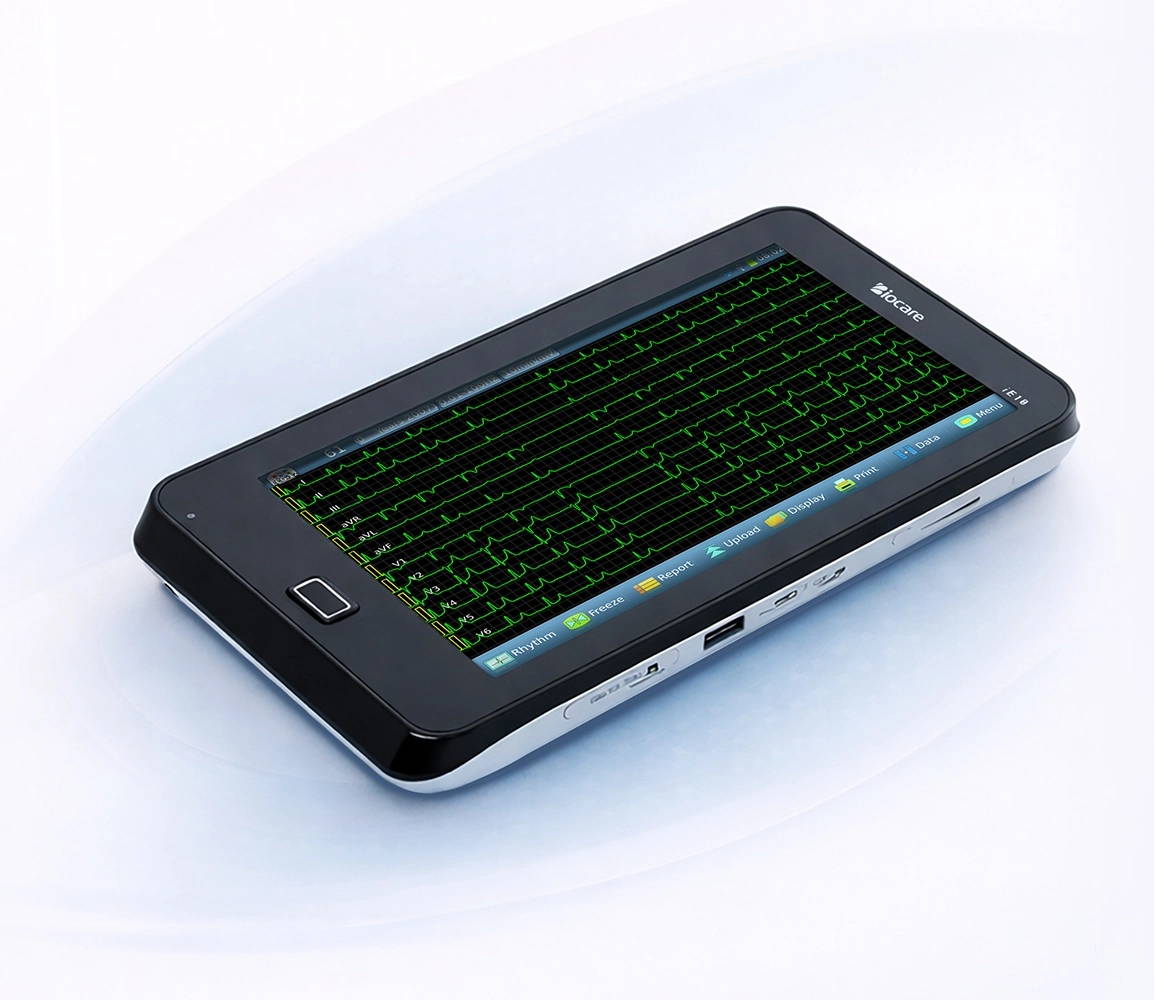

Portable ECG Machine, Based on A Tablet

The device is a mobile ECG machine in the shape of a tablet with a 7” touchscreen display with the weight of 0.5kg and the compact dimensions of 7.64" × 4.61" × 0.98".

Portable 12-lead ECG device with small size and light weight

Standard 12-Lead ECG with Interpretation

The ECG device captures 12-lead data simultaneously, and automatically provides accurate and reliable interpretation of ECG data.

ECG report
ECG measurement data
ECG waveforms

Customize Your View, Own Your Workflow

Switch between horizontal and vertical screen orientation in black or white display style to optimize your viewing experience. The integrated gravity sensor automatically adjusts the display for optimal viewing.

Horizontal or vertical screen of the 12-lead ECG machine is selectable.
display settings of the portable 12-lead ECG machine
  • A crisp white or a sleek black display background

  • With background grid or not

  • Horizontal or vertical screen

  • Adjust the LCD brightness from 0-100

7" Touchscreen, Easy to Navigate

The 7-inch high-resolution color touchscreen offers immediate response and control for easy navigation.

7" Touchscreen, Easy to Navigate

The 7-inch high-resolution color touchscreen offers immediate response and control for easy navigation.

Zoom Function in Freeze Mode

In freeze mode, pinch to zoom in or out the waveforms. With the convenient zoom function, the forms of one’s ECG can be examined and reviewed closely.

The portable ECG machine has zoom function in freeze mode.

Arrhythmia Mode Setting

The portable 12-Lead ECG machine goes beyond basic ECG recording, providing advanced arrhythmia detection and analysis capabilities.

Pacemaker Recognition

By automatically recognizing the user to the presence of a pacemaker, the 12-lead ECG Tablet simplifies the workflow for healthcare professionals.

The 12-lead ECG tablet can detect the pacemaker
The 12-lead ECG tablet has the function gof defibrillation protection

Defibrillation Protection

During defibrillation, the device can detect the discharge of defibrillator, and process automatically, and then quickly recover the waveforms.

Functional Ports to Connect

Beyond its impressive internal storage capacity of over 3,000 files, the 12-lead ECG device provides extended storage options. Leverage the USB and microSD ports for convenient patient information management.

Functional Ports to Connect

Beyond its internal storage capacity of over 3,000 files, the 12-lead ECG device provides extended storage options. Leverage the USB and microSD ports for convenient patient information management.

Output Files in Multiple Formats

Export your data in a variety of formats, including JPEG, XML, DICOM, PDF, and ECG, integrating with existing systems and facilitating effortless sharing with others.

You can export ECG data in JPEG, XML, DICOM, PDF and ECG formats from the 12-lead ECG machine

Output Files in Multiple Formats

Export your data in a variety of formats, including JPEG, XML, DICOM, PDF, and ECG, integrating with existing systems and facilitating effortless sharing with others.

You can export ECG data in JPEG, XML, DICOM, PDF and ECG formats from the 12-lead ECG machine
ECG PC software for the 12-lead 12-channel EKG machine

*Compatible with Microsoft Windows XP/Vista /Win7/Win8/Win10

The Optional ECG Software

Upload ECG data directly to the PC software via Wi-Fi, eliminating the need for manual data transfer and facilitating centralized storage and re-analysis.

*Select with or without the ECG PC software

StandardStandard+ECG Software
PC software for the portable 12-lead ECG machine

*Compatible with Microsoft Windows XP/Vista /Win7/Win8/Win10

Click to See Features

  • Suitable for Biocare resting ECGs
  • Compatible with Windows operating systems from XP to Win 10
  • Connects with Biocare ECG devices via various ports: RS-232, USB, LAN and WLAN
  • Supports individual files or batch files that were imported from ECG devices
  • Data storage and management functions
  • Highly accurate electronic ruler for reanalysis of ECG files
  • Powerful standard and patient-specific diagnosis templates
  • Multiple file formats can be exported in XML, DICOM, BMP, JPG, PDF
  • Supports printing on A4 paper

*Select with or without the ECG PC software

StandardStandard+ECG Software
multiple printing options

Multiple Printing Methods

The device is compatible with HP printers connected via a USB port, and we recommend the following 3 models: HP LaserJet P2035, HP LaserJet Pro P1106, HP LaserJet Pro P1606dn.

Frequently Asked Questions

handy 12-channel ECG device based on a tablet

Frequently Asked Questions

  • How many languages can the device display?

10 languages: English, Chinese, Czech, Italiano, Deutsch, Polish, Español, Português, Français, Română.

  • Is the 12-lead ECG tablet approved by the FDA?

Yes, the device is CE-certificated and FDA-cleared (K171517), adhering strictly to these crucial standards:

  • Applicable standard: IEEE 802.11b/g/n (2.4G), IEEE 802.11a/n (5G);
  • Quality management systems for medical devices: ISO13485;
  • Safety standards: IEC60601-1, CF Type;
  • EMC: IEC60601-1-2;
  • Software: EN/IEC 62304.

  • How to trasfer ECG data to the computer?

There are 2 methods.

1. Upload data to the USB flash drive, transfer files to the computer via the USB drive.

2. Purchase the Software ECG-1000 wrokstation. Upload your ECG data directly to the software via Wi-Fi.

  • What's the feature of the ECG software ECG-1000?

  • Suitable for Biocare resting ECGs
  • Compatible with Windows operating systems from XP to Win 10 (Windows XP, Win7, Win8, Win10)
  • Connects with Biocare ECG devices via various ports: RS-232, USB, LAN and WLAN
  • Supports individual files or batch files that were imported from ECG devices
  • Data storage and management functions
  • Huge accuracy electronic ruler for ECG files re-analysis and re-edit
  • Powerful standard and patient-specific diagnosis templates
  • Multiple file formats can be exported: XML, DICOM, BMP, JPG, PDF
  • Supports printing on A4 paper

Improved Portability with Carry Bag

packing list of the 12-lead ECG machine

Packing List

  • Mobile ECG unit

  • ECG patient cable (1 set)

  • Adhesive electrodes (10 pcs)

  • Limb clamp clip (1 set)

  • Chest suction ball (1 set)

  • ECG snap-clip adapters

  • Power cable (EU & US standard)

  • Carry bag

  • Tablet case with strap

  • User manual

  • Warranty card

  • *With or without PC software depending on the selected version

In Case You Need Extra Electrodes

Technical Specifications

  • Physical Details
  • Tech Specification
  • Rechargeable Battery
  • Input and Output

Physical Details


Device Dimensions

194mm×117mm×25mm ( 7.64" × 4.61" × 0.98")

Weight

500g (1.1 lb, unit & battery in total)

Display

7-inch TFT LCD with touch screen
Display Resolution
1280 × 800
Model
Biocare iE10
compact ECG machine
Acquisition Mode
Simultaneous standard 12-lead
Heart Rate Range
30 bpm~300 bpm
Acquisition Time
10~24 seconds
Sampling Rate
8,000 samples/second/channel
Alarm Prompt
Lead-off detection, lead overflow, AC interference, baseline wander interference, EMG interference
A/D Conversion
24 bits
Common Mode Rejection Ratio (CMRR)
≥110dB
Frequency Response
0.01Hz~250Hz
ECG Interpretation
Biocare CardioPro ECG analysis program for adults and pediatrics
Waveform Freeze
Up to 300 seconds
Rhythm Analysis
  • Single rhythm mode: 30-300 seconds
  • Three rhythms mode: 30-100 seconds for each lead
Measurement Parameters
Ventricular Rate, PR Interval, QRS Time Limit, QT/QTC Interval, P/QRS/T Axis, RV5/SV1 Amplitude and RV5+SV1 Amplitude
Printer
Can be connected to an external laser printer (HP LaserJet P2035, HP LaserJet Pro P1106, HP LaserJet Pro P1606dn)
Record Format
  • Routine Report: 12×1 (V) , 6×2+1R (V), 12×1 (H), 6×2+1R (H), 3×4+1R (H) , 3×4+3R (H);
  • Detailed Report: 12×1 (H)+Detailed measurement value;
  • Median Beat Report
Record Mode
Auto, manual
Papwr Speed
6.25 / 12.5 / 25 / 50mm/s

Battery


Battery Life
Rechargeable lithium battery for 3-hour continuous operating
Charging Time
4 hours
Rated Voltage
3.8V
Rated Capacity
6000mAh

Input and Output


Communication with Biocare ECG-1000 software on PC with Microsoft Windows XP/Vista /Win7/Win8/Win10 operating systems
Input
Touch screen, Support external scanner
Data Storage
≥3000 ECG files (when the ECG acquisition time is 10 seconds ), support external SD card, U disk
Data Format
ECG, XML, JPEG, DICOM, PDF
loT
Support WIFI, Bluetooth, mobile network connection, TCP, FTP, HL7 protocol via WIFI or mobile network

Find Your Perfect Match

Compare these 2 portable ECG machines before you make your purchase.

Sale Off
12-lead EKG based on a tablet and a carry bag
$1,599.00

Display Size

7" larger touchscreen in white or black

4.3" touchscreen only in black

Screen Rotation

Yes, horizontal and vertical screen

No

Leads

12 leads

6/12 leads

ECG Acquisition Time

10-24s

10s

Rhythm Time

30-300s, easier arrhythmia locating

10-180s

Defibrillation Protection

Yes

No

Carry Bag

Yes

No

Reviews, Q&A

Customer Reviews

Based on 4 reviews
100%
(4)
0%
(0)
0%
(0)
0%
(0)
0%
(0)
H
Halle S.
Very portable

As a cardiologist who performs numerous 12-lead ECGs daily, I've encountered various portable and stationary machines. This tablet-based ECG stands out for its exceptional portability. It comes with a bag. I can easily carry it between consultations, on house calls, or even during rounds, streamlining patient care and improving accessibility.

G
Georgie F.
User-friendly

The tablet's intuitive interface and touchscreen make it incredibly user-friendly, allowing me to quickly set up and perform ECGs even in busy environments.

D
Dexter C.
Easy to carry

EKG device and all accessories including chest suction ball, clips, and electrode patches can be put into the carry bag coming with the package. I can do mobile rounds without any burden. I like this portable EKG device.

D
Dr. S.S.
Perfect for routine ECGs.

I highly recommend this ECG tablet to any cardiologist looking for a portable and user-friendly machine for routine ECGs. It's incredibly lightweight, offers great functionality, and significantly improves my workflow.

Free Shipping

Free shipping. The referenced transit time is 3-8 business days for shipping in the USA. Note: Extra 2-4 business days may be needed for shipping internationally.

Maintenance Warranty

Our company guarantees the new instrument on the material and technological qualification for this product within 18 months and the accessories within 6 months since the purchasing day, while consumables are not included in the guarantee. This warranty is inapplicable to the products undergoing any modifications, disassembles, refittings or self-repairings without the permission of our company. We're not responsible of the products damaged by accidents such as fire, thunder and lightning, flood and other disasters, intentional damage, improper installation and improper usage.

30-Day Money Back Guarantee

At any time within 30 days of receiving your order, you are not 100% satisfied, you may return it to us for a refund.
If you bought the product from www.getwellue.com, you can return it to us. Your payment card will be credited upon receipt of the returned merchandise. Any items damaged due to reasons not covered under warranty cannot be accepted back for refund under our 30 Day Money Back Guarantee.
If you are sure you want to return the goods, please contact us at first at support@getwellue.com. We provide 24/7 ticket and email support. Please contact us if you need assistance.

Regulatory & Compliance

The intended use of Biocare Digital Electrocardiograph (Model: iE10) is to acquire ECG signals from adult and pediatric patients through body surface ECG electrodes. The product has received CE mark (EC Certificate Link) and FDA approval (FDA Clearanced Link). The electrocardiograph is only intended to be used in hospitals or healthcare facilities by doctors and trained healthcare professionals. The proposed device has analysis feature, however the ECG with measurements and interpretive statements is offered to clinician on an advisory basis only. Any non-clinical purposes will void any applicable product warranty. Please carefully read and understand all cautions, warnings and operational manuals prior to use.
