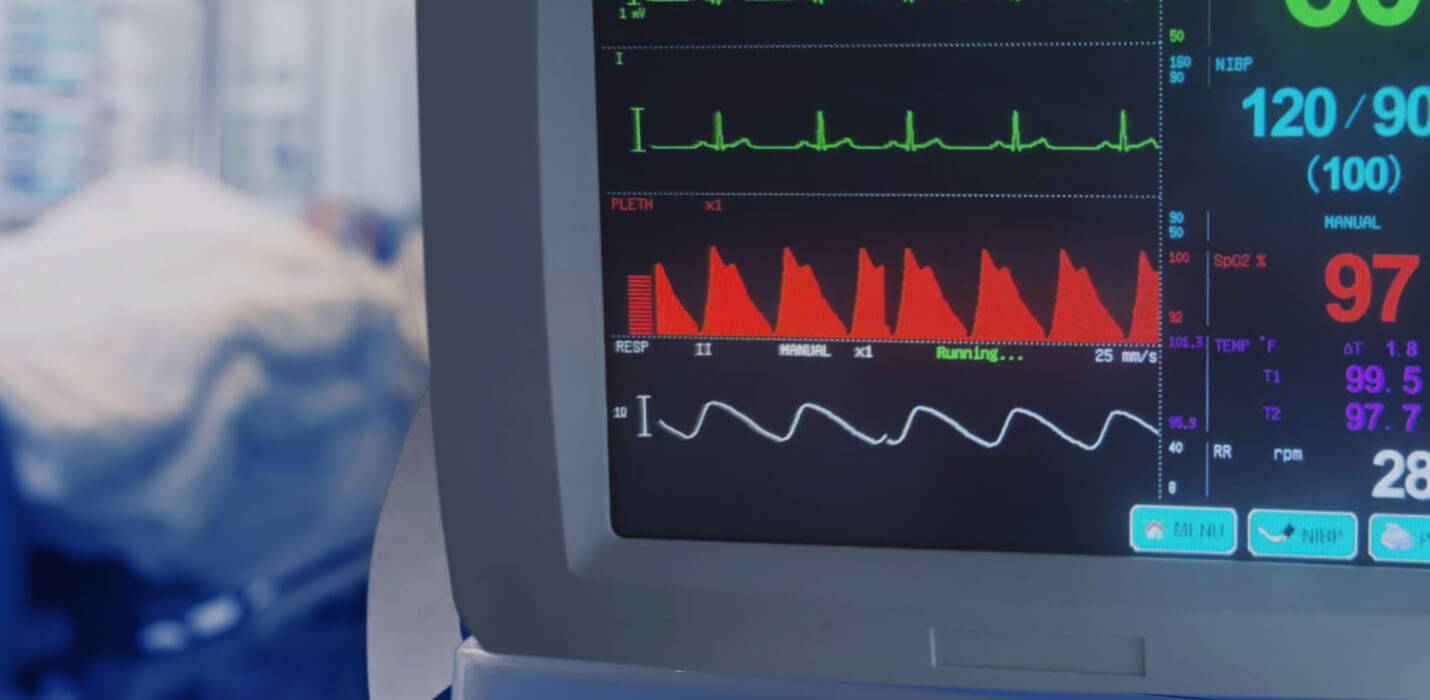

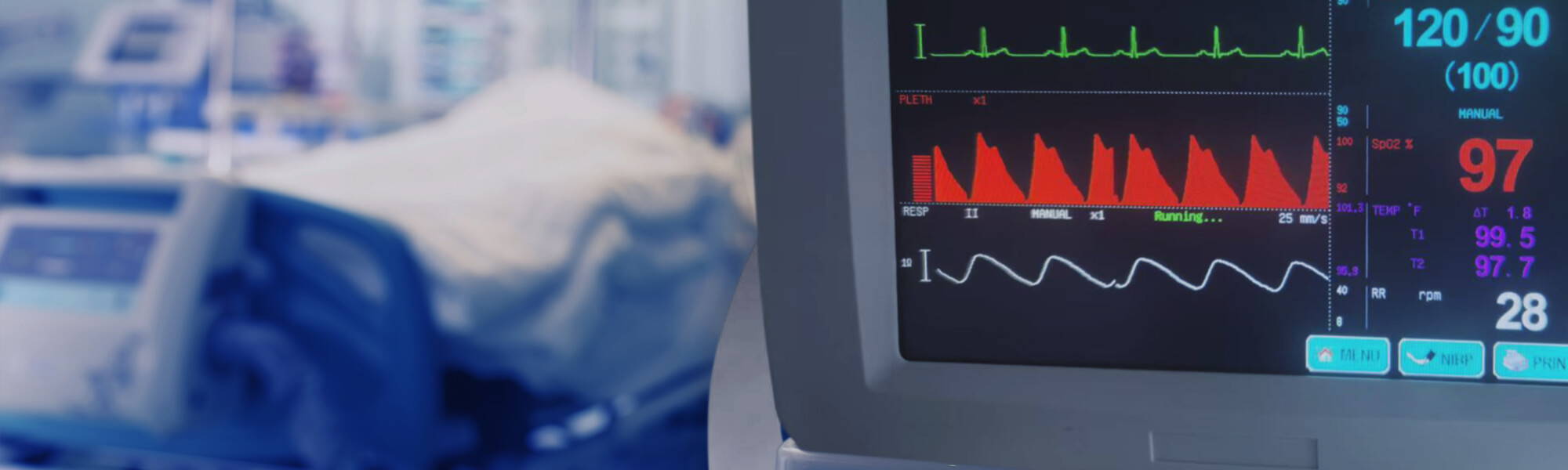

The 10.4" touchscreen presents vital data in a clear, well-organized layout with smooth touch operation and easy-to-read visibility. Both intuitive touch operation and well-placed physical buttons provide quick access to information.

Up to 20 interface color themes allow clinicians to tailor the display to their preferences. Preset display views include 1 ECG, 2 ECGs, 3 ECGs, 7 ECGs, 9-Channel, Mini Trend, OxyCRG, Big Waveform, Huge Digit; plus 5 customizable views.

This 10.4-inch patient monitor is designed for use across a wide range of clinical settings, from general wards and step-down units to emergency departments and other hospital care areas. It delivers accurate and consistent vital sign readings wherever continuous patient monitoring is required.

It is also well suited for home health care, offering reliable performance and flexible monitoring capabilities for confident tracking of patient status at home.

The 10.4-inch Patient Monitor delivers dependable SpO2 measurements in demanding clinical environments. It is engineered to perform reliably under low perfusion, low temperature, and motion-affected conditions.

With over 16 seconds of anti-motion resistance, the SpO2 sensor can help maintain stable readings during patient movement, routine care activities, and other sources of interference when accuracy matters most.

The monitor delivers high-performance ECG monitoring for patients with or without a pacemaker, with full defibrillation protection and strong resistance to electrosurgical (ESU) interference.

It continuously detects 34 arrhythmias (including A-Fib) and analyzes ST changes in real time to support faster and more informed clinical decisions.

The multi-parameter vital signs monitor offers powerful internal data storage and convenient data sharing capabilities. Using a standard USB flash drive, historical data can be exported as CSV files for quick review or consultation with other clinicians.

Storage Capacity:

• 360 hours of trends

• 1,000 alarm events with waveforms

• 500 arrhythmia events with waveforms

• 1,500 NIBP records

• 48 hours of full waveform data

* 1 USB flash drive included for CSV data export

The patient monitor features wired Ethernet networking and seamless integration with our optional central station software, supporting monitoring of 1–64 devices and dual-screen operation.

The patient monitor also allows direct one-to-one PC connection without the need for a router, simplifying setup for smaller facilities while maintaining flexibility across different clinical scenarios.

Dual Screens · Maximum 16 Patients per Screen

Windows 7–11 Compatible

6,000+ Patient Records Stored

HL7 Compatible

The patient monitor delivers multi-level visual and audible alarms to alert clinicians to abnormal trends or critical events. All alarms are automatically time-stamped and archived for accurate documentation and traceability.

When integrated with the central monitoring platform, alarm events are synchronized across devices for centralized event management. The built-in printer supports automatic alarm-triggered printing to preserve critical data.

Offering noticeably more screen space than ultra-compact monitors and a foldable carrying handle for effortless transport, the 10.4" portable patient monitor delivers a practical balance between viewing comfort and mobility in routine care settings.

The vital signs monitor offers flexible optional configurations, including capnography monitoring (compatible with both our optional sidestream EtCO2 and Respironics LoFlo™ sidestream EtCO2 modules), 10-lead ECG capability, IBP, CO, central monitoring system integration, and versatile mounting solutions.

This patient monitor delivers reliable SpO2 accuracy during motion and low perfusion, rapid ECG recovery following defibrillation, and dual-method respiration monitoring for added confidence. Its energy-saving standby mode and durable design balance clinical performance with cost-effectiveness.

Versatile enough to serve as a bedside monitor, ICU/CCU monitor, or sedation monitor and beyond, it integrates seamlessly into diverse care settings.
