8-Inch Touchscreen Patient Monitor with Printer: 34 Arrhythmia Analyse

8-Inch Touchscreen Patient Monitor with Printer: 34 Arrhythmia Analyses, Settings & Review

January 19, 2026

Arrhythmia monitoring is most valuable when clinicians can do three things quickly: detect, configure, and review events with ECG waveform context. The 8-Inch Touchscreen Patient Monitor with Printer supports 34 arrhythmia analysis types and provides dedicated tools for ARRHYTHMIA SETTINGS and ARRHYTHMIA REVIEW to help standardize alarm behavior and streamline event validation and documentation.

What Arrhythmia Analyses Are Supported? (34 Types)

1) Supraventricular (SV)

Afib1(c)
Afib1(f)
Atr Flutt
Sinus Arr
Missed
Atr Tach
P Atr Tach
Nodal
SVT

2) Rate Limit Events

Tachycardia
Extreme_Tachycardia
Bradycardia
Extreme_Bradycardia

3) Premature (PREM)

PAC
PNC
PVC1-LV
PVC1-LV Early
PVC1-LV RonT
PVC2-RV
PVC2-RV Early
PVC2-RV RonT
Multi PVCs

4) Ventricular (VENT)

PVCS 6/Min
PVCS 12/Min
PVCS 24/Min
Freq MF
Bigeminy
Trigeminy
Pair PVCs
Run 5 PVCs
Run 11 PVCs
V Tach
Asystole

5) Conduction (COND)

1st DEG BLK

How to Configure Detection (ARRHYTHMIA SETTINGS)

1. Select Tools in the Main menu, and then select Arrhythmia. The following menu appears:

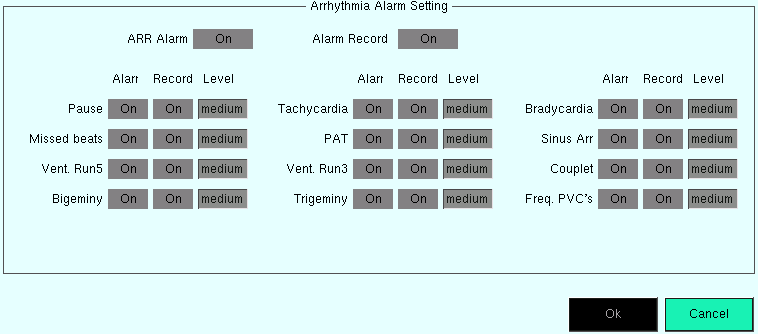

2. In this menu, select Arr Setting, the following Arrhythmia Alarm Setting dialog box pops up.

How to Configure Arrhythmia Analysis (Settings)

3. In this dialog, you can perform the following settings. The Alarm field indicates the alarm on/off status and Record indicates the alarm recording on/off status. You can change the settings as described below.

ARR Alarm: All Arrhythmia alarms on.

ON: Enables all arrhythmia alarms. When the Arrhythmia alarm occurs, the monitor gives alarm indications and saves the alarm.

OFF: Disables all arrhythmia alarms that can be disabled. When the Arrhythmia alarm occurs, the monitor neither gives alarm indications nor saves the alarm.

Alarm Record: All arrhythmia alarm recording on.

ON: Enables the recording of all arrhythmia alarms. The monitor starts recording when the Arrhythmia alarm occurs.

OFF: Disables the recording of all arrhythmia alarms. The monitor does not record when the Arrhythmia alarm occurs.

Alarm and Record for 12 Arrhythmia Options: An arrhythmia alarm for each option individually.

ON: When this Arrhythmia alarm occurs, the monitor gives corresponding alarm indications and saves the alarm.

OFF: When this Arrhythmia alarm occurs, the monitor neither gives corresponding alarm indications nor saves the alarm.

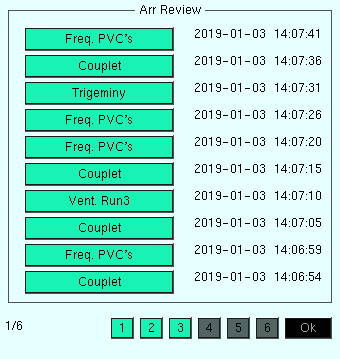

How to Review Events (ARRHYTHMIA REVIEW)

When an arrhythmia is flagged, speed matters. The ARRHYTHMIA REVIEW function is designed for fast validation and documentation.

Caution:

Because all the arrhythmia events will be cleared away after the power is off, so you must think over carefully before turning off the monitor.

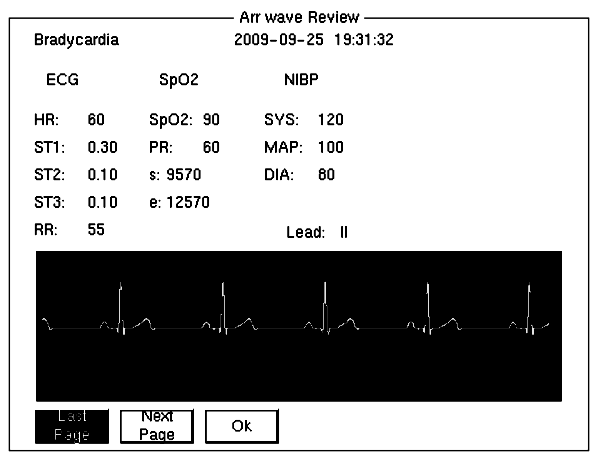

Selecting a certain arrhythmia option in the recording list opens the following window, such as the first one in the first page.

The waveform and the time of a selected arrhythmia event as well as the parameter values at the event time are displayed respectively 5 seconds before and after the alarm.

Last Page/Next Page option allows you to page up and down to review the waveform and the parameters of other arrhythmia events.

EXIT option allows you to return to the Arr Review window.
