Standard view: Standard display of vital signs parameters.
Big font view: All values are shown in a larger font
ECG waveforms view: 7 traces of ECG waveforms display in phase
Trend coexist view: 5 waveforms and 4 hours’ trends of HR, NIBP, SPO2, RESP and TEMP.
OxyCRG dynamic view: Show SpO2, HR, and RESP in a graphical format.
NIBP view: Show the recent 7 groups of blood pressure data.
Price Drop! Save $360 on Touchscreen Patient Monitor!
8-Inch Touchscreen Patient Monitor
Continuously monitor patient’s vital signs both at the bedside and on transport.
8-Inch Touchscreen Patient Monitor
Continuously monitor patient's vital signs both at the bedside and on transport.
8-Inch Touchscreen Patient Monitor
Continuously monitor patient’s vital signs both at the bedside and on transport.
Advanced features that help comprehensive monitoring
8" Touch Screen
8" color touchscreen, for user-friendly operation and high image clarity
6 Parameters Monitoring
ECG, RESP, NIBP, SpO2, Pulse Rate and Temperature
Advanced Analysis
Support 13 type of arrhythmia analysis, ST segment analysis and pacemaker detection
8-Inch Touchscreen
8" color touchscreen, for user-friendly operation and high image clarity
6 Parameters Monitoring
ECG, RESP, NIBP, SpO2, Pulse Rate and Temperature
Advanced Analysis
Support arrhythmia analysis, ST segment analysis and pacemaker detection
3/5 Leads ECG Waveform Display
3 Leads/5 Leads ECG
waveforms display in phase.
15 Kinds of Dose Concentration Calculation
Convenient for clinical control of anesthetic dosage
For All Kinds of Workplace
Anti-ESU and anti- defibrillator, support diagnostic, monitor and surgery mode
Advanced Features for Comprehensive Monitoring
8-Inch
Touchscreen
Color touchscreen for user-friendly operation and high image clarity
6 Parameters Monitoring
ECG, RESP, NIBP, SpO2, Pulse Rate and Temperature
Advanced Analysis
Support arrhythmia analysis, ST analysis and pacemaker detection
3/5 Leads ECG Display
Support 3/5 Leads ECG
waveforms display in phase.
15 Kinds of Dose Concentration Calculation
Convenient for clinical control of anesthetic dosage
For All Kinds of Workplace
Anti-ESU and anti- defibrillator, support diagnostic, monitor and surgery mode
Display A Full Set of Vital Parameters
The 8-inch touchscreen patient monitor can display a full set of vital parameters, including 3-lead/5-lead ECG, respiration, oxygen saturation (SpO2), pulse rate (PR), noninvasive blood pressure (NIBP), temperature and EtCO2 (optional).
Display A Full Set of Vital Parameters
The 8-inch touchscreen patient monitor can display a full set of vital parameters, including 3-lead/5-lead ECG, respiration, oxygen saturation (SpO2), pulse rate (PR), noninvasive blood pressure (NIBP), temperature and EtCO2 (optional).
Intuitive Touch Operation
Equipped with an 8-inch high-resolution touchscreen and an intuitive shortcut menu, this portable patient monitor enhances operational ease and boosts working efficiency.
Multiple Displays to Highlight Different Monitoring Focus
Support large font, trend review, 7-trace ECG waveforms display and other display modes to meet different monitoring needs.
Standard view: Standard dispaly of vital signs parameters.
Big font view: All values are shown in a larger font
ECG waveforms view: 7 traces of ECG waveforms display in phase
Trend coexist view: 5 waveforms and 4 hours’ trends of HR, NIBP, SPO2, RESP and TEMP.
OxyCRG dynamic view: Show SpO2, HR, and RESP in a graphical format.
NIBP view: Show the recent 7 groups of blood pressure data.
Multiple Displays to Highlight Different Monitoring Focus
Support large font, trend review, 7-trace ECG waveforms display and other display modes to meet different monitoring needs.
Support 6 display as below:
13 Types of Arrhythmia Analysis
The portable patient monitor can conduct up to 13 different arrhythmia analyses and store the latest 60 alarm events in a dedicated buffer. This function can call the doctor's attention to the patient's heart rate by measuring and classifying the arrhythmia and abnormal heartbeat and triggering the alarm. Additionally, users can edit these arrhythmia events through the menu for further customization.
Which arrhythmia analyses are supported?
- TACHY: Tachycardia
- BRADY: Bradycardia
- MISSED BEATS
- PN: Pacemaker not captured
- PNP: Pacemaker is not pacing
- ASYSTOLE
- VFIB/VTAC: Ventricular fibrillation/ventricular tachycardia
- R ON T
- VT> 2
- COUPET
- PVC
- BIGEMINY
- TRIGEMINY
13 Types of Arrhythmic Analysis
The monitor is capable of conducting up to 13 different arrhythmia analyses and storing the latest 60 alarm events in a dedicated buffer. This function can call the doctor's attention to the patient's heart rate by measuring and classifying the arrhythmia and abnormal heartbeat and triggering the alarm. Additionally, users can edit these arrhythmia events through the menu for further customization.
13 Types of Arrhythmia Analysis
The portable patient monitor can conduct up to 13 different arrhythmia analyses and store the latest 60 alarm events in a dedicated buffer. This function can call the doctor's attention to the patient's heart rate by measuring and classifying the arrhythmia and abnormal heartbeat and triggering the alarm. Additionally, users can edit these arrhythmia events through the menu for further customization.
Real-Time ST Segment Analysis
It is available to measure the variance of the ST segment through ST analysis on selected lead waveform tracks. The corresponding ST measurement result displays numerically at ST1 and ST2 in the Parameter Area. The trend can be viewed in table or graphic form.
15 Kinds of Dose Concentration Calculation
Healthcare professionals can easily assess and monitor the concentration levels of 15 different doses with the calculation function. This feature empowers clinicians to ensure safe and effective patient care during anesthesia.
Optional End-Tidal CO2 Monitoring
End-tidal CO2 monitoring plays a vital role in clinical practice by providing real-time information about a patient's respiratory and circulatory status. It assists healthcare providers in assessing and managing patients' vital signs to deliver better medical care.
Optional End-Tidal CO2 Monitoring
End-tidal CO2 monitoring plays a vital role in clinical practice by providing real-time information about a patient's respiratory and circulatory status. It assists healthcare providers in assessing and managing patients' vital signs to deliver better medical care.
* Note: The standard module does not have the interface to support the EtCO2 module.
SideStream EtCO2 Modules
We provide optional sidestream end-tidal carbon dioxide modules (ETCO2 modules) that are compatible with 8-inch touchscreen patient monitors. These modules enable real-time monitoring of ETCO2 concentration, inhaled CO2 concentration, respiratory rate, as well as inspiratory and expiratory times.
SideStream EtCO2 Modules
We provide optional sidestream end-tidal carbon dioxide modules (ETCO2 modules) that are compatible with multi-parameter patient monitors. These modules enable real-time monitoring of ETCO2 concentration, inhaled CO2 concentration, respiratory rate, as well as inspiratory and expiratory times.
Compatible with Adults And Children
The touchscreen patient monitor is suitable for use with adults, children and newborns usage in diverse healthcare environments. We also offer accessories tailored for pediatric patients.
Apply for Adults and Children
The touchscreen patient monitor is suitable for use with adults, children and newborns usage in diverse healthcare environments. We also offer accessories tailored for pediatric patients for purchase.
Apply in A Variety of Settings
Ward Care
Ambulance (On-Transport)
Community Care
Home Health Care
Apply in A Variety of Settings
Ward Care
On-Transport
Community Care
Home Health Care
More Advanced Features
for All Acute Care Environments
More Features for All Acute Care Environments
Trend Coexist Display & OxyCRG DyNamic View Display
To help healthcare providers better understand the patient's condition and trend changes.
Anti-ESU & Anti-Defibrillator
It can be used in various harsh environments such as surgery and wards.
Built-in Rechargeable Battery
Can support up to 4 hours of continuous working.
3 Categories of Alarm
Classified into three categories, which are physiological alarm, technical alarm
and general alarm.
Compare with The Similar Product
MOST EFFICIENT
MOST EFFECTIVE
MOST PORTABLE
MOST PORTABLE
Display
8-Inch touchscreen
7-Inch TFT LCD
Weight
2.9lb
2.9lb
Lead Mode
3/5 Leads ECG Waveform Display
3/5 Leads ECG Waveform Display
Battery
Rechargeable, 4-hour continuous work
Rechargeable, 3-hour continuous work
Arrhythmia Analysis
Yes
Yes
EtCO2 Monitoring
Support
Nonsupport
Printer Supported
No
No
Neonatal Mode
Support
Nonsupport
What's In the Box
8-Inch Portable Patient Monitor
Metal Back Rack
5 Leads ECG Cable
NIBP Cuff for Adult
NIBP Extendsion Tube
Disaposable Electrodes 10 pcs (come with package)
Disaposable Electrode 60 pcs (extra patches for free)
SpO2 Finger Probe for Adult
TEMP Probe
Power Adaptor x 2 (used in all countries)
User Manual
If you want more accessories for pediatric and neonatal patients, please contact us at support@getwellue.com
Accessories in the Package
Included in the package, we provide all the accessories you need to operate the unit.
1 Set of patient ECG cable
NIBP cuff for adult
NIBP extendsion tube
SpO2 sensor for adult
Accessories for Pediatric Patients
Compatible with Rolling Stand
The rolling stand allows healthcare professionals to move patient monitoring equipment easily from one patient's bedside to another or between different areas of a medical facility. This mobility is essential for efficient patient care.
What's In the Box
8-Inch Patient Monitor
Metal Back Rack
5 Leads ECG Cable
NIBP Cuff for Adult
NIBP Extendsion Tube
Disaposable Electrodes 10 pcs (come with package)
Disaposable Electrode 60 pcs (extra patches for free)
SpO2 Finger Probe for Adult
TEMP Probe
Power Adaptor x 2 (used in all countries)
User Manual
If you want more accessories for pediatric and neonatal patients, please contact us at support@getwellue.com
Accessories in the Package
Included in the package, we provide all the accessories you need to operate the unit.
1 set of patient ECG cable
NIBP cuff
NIBP extendsion tube
SpO2 finger probe for adult
Accessories for Pediatric Patients
Accessories in the Package
Included in the package, we provide all the accessories you need to operate the unit.
1 set of patient ECG cable
SpO2 sensor for adult
NIBP cuff for adult
TEMP probe
NIBP extendsion tube
Power Adaptor (EU)
Power Adaptor (US)
Compatible with Rolling Stand
The rolling stand allows healthcare professionals to move patient monitoring equipment easily from one patient's bedside to another or between different areas of a medical facility. This mobility is essential for efficient patient care.
Accessories for Pediatric Patients
Technical Specifications
- PHYSICAL DETAILS
- ECG
- NIBP
- RESP
- SPO2
- TEMP
Size
6.9"*8.3"*3.1"
Weight
2.9lb
Display
8" color touchscreen
Power
Input: AC 90 V～240V, 50/60Hz
Output: DC 12V ~ 20V
Type of Battery
Built-in rechargeable battery
Type of EtCO2 Sensor
SideStream
Life of Main Unit
5 years
Warranry
1 year
Admin Password
5188
Lead Mode
5 Leads or 3 Leads
5 Leads ( R, L, F, N, C or RA, LA, LL, RL,V)
Lead selection: I, II, III, avR, avL, avF, V,
Waveform: 3 ch
3 Leads ( R, L, F or RA, LA, LL)
Lead selection: I, II, III,
Waveform: 1 ch
Gain
x2.5mm/mV, x5.0mm/mV, x10mm/mV, x20mm/mV, auto
HR and Alarm
Range: Adult: 15-300 bpm, Neonate/Pediatric: 15-350 bpm
Accuracy: ± 1% or ± 1bpm, which great
Resolution: 1 bpm
Sensitivity: > 200 (uV P-P)
Differential Input Impedance
> 5 MΩ
CMRR
Monitor: > 105 dB, Operation: > 105 dB, Diagnosis: > 85 dB
Electrode Offset Potential
±300mV
Leakage Current
< 10 uA
Baseline Recovery
< 3s after defi
ECG Signal Range
±8mV (Vp-p)
Bandwidth
Surgery: 1-15 Hz, Monitor: 0.5-35 Hz, Diagnostic: 0.05-100 Hz
Calibration Signal
1 (mV p-p), Accuracy: ±5%
Method
Oscillometric
Mode
Manual, Auto, STAT
Measuring Interval in AUTO Mode
1, 2, 3, 4, 5, 10, 15, 30, 60, 90, 120, 180, 240,480 (Min)
Measuring Period in STAT Mode
5 Min
Pulse Rate Range
40 - 240 bpm
Alarm Type
SYS, DIA, MEAN
Measuring and Alarm Range
Adult Mode: SYS: 40-270 mmHg, DIA: 10-215 mmHg, MEAN: 20-235 mmHg
Pediatric Mode: SYS: 40-200 mmHg, DIA: 10-150 mmHg, MEAN: 20-165 mmHg
Neonatal Mode: SYS: 40-135 mmHg, DIA: 10-100 mmHg, MEAN: 20-110 mmHg
Resolution
Pressure 1mmHg
Accuracy
Maximum Mean error: ±5mmHg
Maximum Standard deviation: ±8mmHg
Overpressure Protection
Adult Mode: 297±3 mmHg
Pediatric Mode: 240±3 mmHg
Neonatal Mode: 147±3 mmHg
Method
Impedance between R-F(RA-LL)
Differential Input Impedance
>2.5 MΩ
Measuring Impedance Range
0.3~5.0 Ω
Base line Impedance Range
0-2.5 KΩ
Bandwidth
0.3 ~ 2.5 Hz
Resp. Rate
Measuring and alarm range: Adult: 0-120 rpm, Neo/Ped: 0-150 rpm
Resolution: 1 rpm
Accuracy: ±22 rpm
Apean alarm: 10-40 S
Measuring Range
0-100 %
Alarm Range
0-100 %
Resolution
1 %
Accuracy
70%-100% ±2 %, 0%-69% unspecified
Actualization interval
about 1 second
Alarm Delay
10 seconds
Pulse Rate
Measuring and Alarm Range: 0-254bpm
Resolution: 1bpm
Accuracy : ±2bpm
Channel
1
Measuring and Alarm Range
0-50℃
Resolution
0.1℃
Accuracy
± 1%℃
Actualization interval
about 1 second
Average Time Constant
<10 seconds
Frequently Asked Questions
Need Help? We've got you covered!
How many NIBP data groups can be stored?
The monitor can review the latest 1000 groups of NIBP measurement data.
Can this patient monitor be used in Europe?
Yes. This patient monitor is CE certified and comes with both European and American power cords, making it suitable for use in European regions.

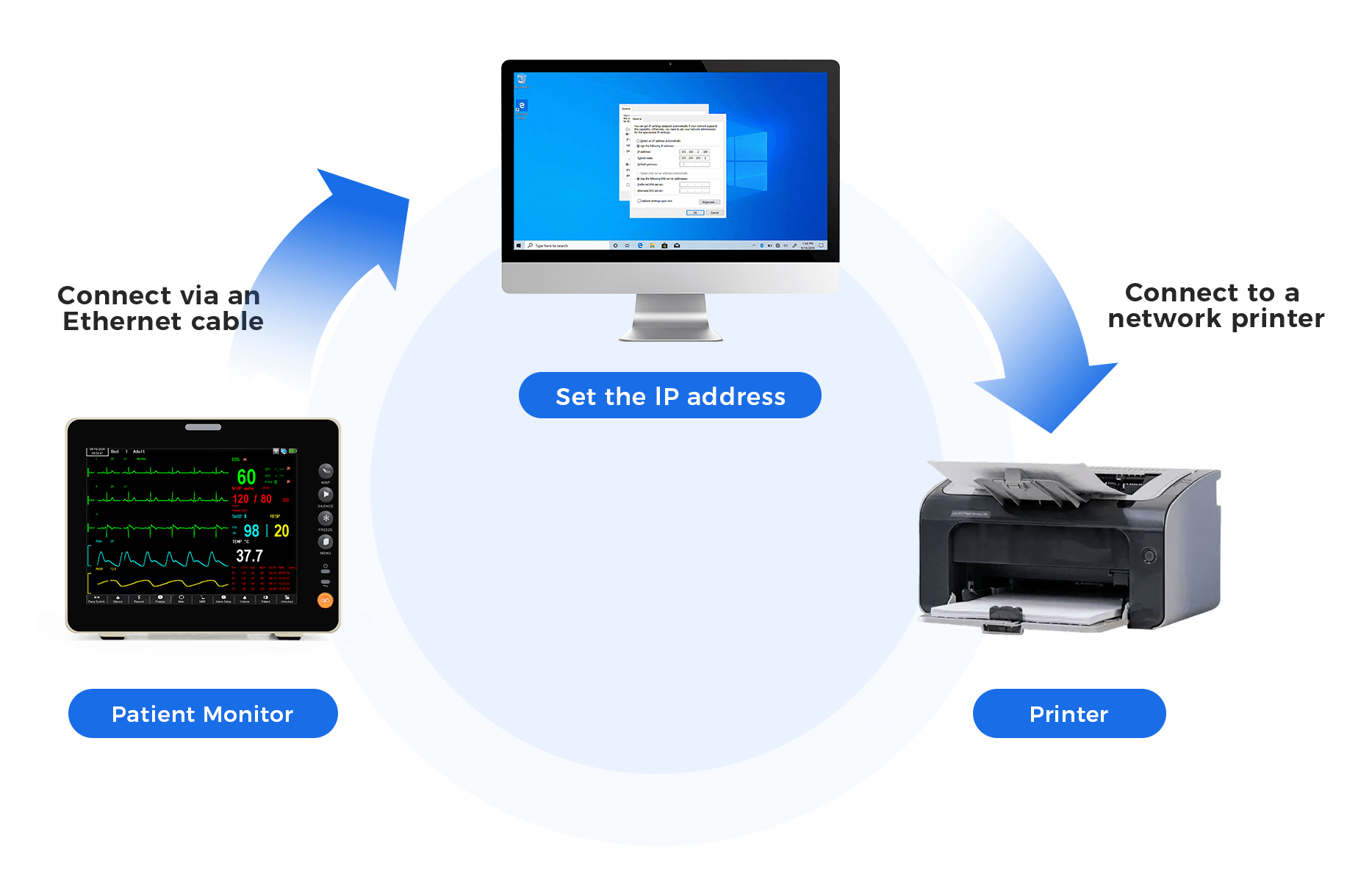

Can this monitor connect to a printer?
We're sorry that this feature is not currently supported. If you have this kind of requirement, please contact us at support@getwellue.com.
Can I purchase the standard module of the patient monitor and buy the EtCO2 module from another store?
No. We're sorry that the standard module of the touchscreen patient monitor does not have the interface to support the EtCO2 module.
Reviews & FAQ
Disclaimer
Please consult medical professionals or qualified healthcare providers regarding any questions you may have about any medical conditions. This portable patient monitor should be used by medical professionals only.
Shipping
For countries and regions we can deliver to, the referenced transit time is 2-8 business days. For pre-order, the referenced transit time will be 5-10 business days. To check the countries and regions we can deliver to, please refer to our Shipping Policy. You can track your order status anytime here: https://getwellue.com/pages/track-order. Please feel free to contact us if you have any questions or concerns.
30-Day Money Back Guarantee
At any time within 30 days of receiving your order, you are not 100% satisfied, you may return it to us for a refund.
If you bought the product from www.getwellue.com, you can return it to us. Your payment card will be credited upon receipt of the returned merchandise. Any items damaged due to reasons not covered under warranty cannot be accepted back for refund under our 30 Day Money Back Guarantee.
If you are sure you want to return the goods, please contact us at first at support@getwellue.com. We provide 24/7 ticket and email support. Please contact us if you need assistance.
